GAZ-М-415

SovAvto Website.



Model GAZ-M-415
Seating 2
Curb weight, kg TOTAL 1,370
front axle -
rear axle -
Gross weight, kg TOTAL -
front axle -
rear axle -
Payload [carrying capacity] weight, kg 500 (400 on unpaved roads)
Permissible [semi-]trailer weight, kg -
Length, mm 4580
Width, mm 1770
Height, mm 1750
Wheelbase, mm 2845
Track width, mm front 1435
rear 1440
Minimal ground clearance, mm under front axle -
under rear axle 210
Minimal radius of turn, m b/n curbs (outer front wheel) 6,35
b/n walls (extreme exterior dimension -
Maximum speed, km/h 90
Fuel consumption, liters/100km 14.5
Acceleration time from 0-100 km/h, seconds -
Transmission gearbox 3 speed
gearbox ratios -
main gear ratio singular, pair of bevel gears w/ spiral teeth
transfer box ratios -
clutch single-disk, dry
Wheels number -
tire size 7,00-16
tire pressure, kg/cm2 -
Suspension front longitudinal semi-elliptic leaf springs
rear longitudinal semi-elliptic leaf springs
Steering gear cone worm and 2-ridge roller
gear ratio -
Brakes braking distance, m -
service (foot) drum type w/ mechanical drive to all wheels
parking (hand) drum type w/ mechanical drive to all wheels
Filling capacities, liters fuel tank 60
engine cooling system -
engine lubrication system -
gearbox housing  -
axle housing -
steering system cylinder -
shock absorbers -
hydraulic brake drive -
air filter -
Carburetor -
Electric equipment -
Accumulator battery -
Generator [alternator] -
Relay-regulator -
Starter motor -
Timer-distributor -
Spark plugs -
Engine engine type carb., 4-stroke, 4 cyl., sv
cylinder work order -
maximum horsepower, hp 50 @ 2800 rpm
maximum torque, Nm 17.0
displacement, liters 3.285
compression ratio 4.6:1
bore/stroke, mm 98.43 / 107.95
Years of production 1939-1942
Total units made ?
Wheel arrangement 4 X 2
Pictures 9 KB (b/w, side view [5])

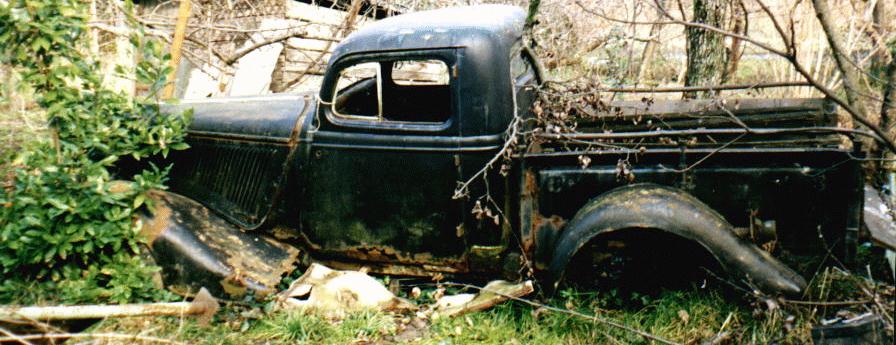

75 KB (color, ruined side view [28])

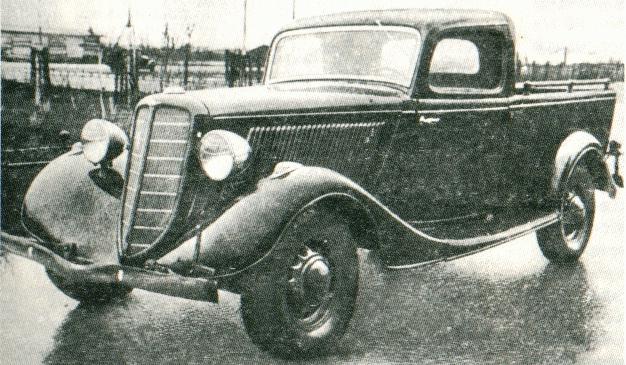

66 KB (b/w, front view, 1940 [3])

8 KB (b/w, rear view, tent added recently[7])

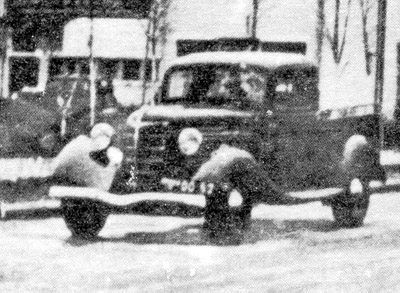

51 KB (b/w, front view [3])

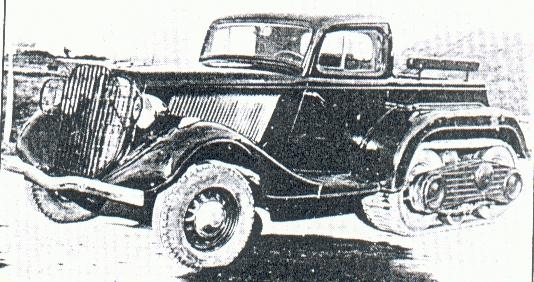

Only few of these cars were made. 1937-1939 this pickup was an assimilation of a few different cars. It had some motor parts and spoilers from GAZ-M-1, cabin from GAZ-AA (GAZ-4) and cargo section from GAZ-M-415 itself. All these pickups were based on GAZ-M-1. A modification of GAZ-M-415 was GAZ-VM (45 KB [7]) which had caterpillar tracks in the rear. These pickups were practically made on the basis of GAZ-11-41, but with the older GAZ-M engine instead of the newer GAZ-11 engine which was to be used on GAZ-11-41.
