MZMA-407, MZMA-410N, MZMA-423N, MZMA-411, MZMA-430

SovAvto Website.



Model  MZMA-407 (MZMA-423N)* MZMA-410N (MZMA-411)**
Seating 4 (4 or 2) 4
Curb weight, kg [lb] TOTAL 990 [2,178] (1,030 [2,266]) 1,150 [2,530]
front axle 530 [1,166] (-) -
rear axle 460 [1,012] (-) -
Gross weight, kg [lb] TOTAL 1,290 [2,838] -
front axle 645 [1,419] (-) -
rear axle 645 [1,419] (-) -
Payload [carrying capacity] weight, kg [lb] - (100 if 4 passengers, 250 if 2 passengers) -
Permissible [semi-]trailer weight, kg [lb] - -
Length, mm [in.] 4055 [13' 3 10/16"]
Width, mm [in.] 1540 [5' 10/16"]
Height, mm [in.] 1560 [5' 1 7/16"] (1600 [5' 3"]) 1670 [5' 5 3/4"]
Wheelbase, mm [in.] 2370 [7' 9 5/16"] 2377 [7' 9 9/16"]
Track width, mm [in.] front -
rear -
Minimal ground clearance, mm [in.] under front axle 200 [7 14/16"] 220 [8 11/16"]
under rear axle 200 [7 14/16"] -
Minimal radius of turn, m [yards] b/n curbs (outer wheel) 6.0 [6.6]
b/n walls (extreme exterior point) 6.5 [7.1]
Maximum speed, km/h [mi/h] 115 [71] 90 [56]
Fuel consumption, liters/100km [mi/gal] 6.5 [36] 9.5 [25]
Acceleration time from 0-100 km/h [62 mi/h], seconds - -
Transmission gearbox 4 speed, w/ synchronizer for II, III and IV gears, steering -wheel-mounted shifter
gearbox ratios I-3.81/ II-2.42/ III-1.45/ IV-1.0/ R-4.71*** I-3.1, II-1.74, III-1.00, rear-4.71
main gear ratio 4.55 (hypoid 41 and 9 teeth) 4.62
transfer case ratio - high-1.15/ low-2.68
clutch single-disk, dry w/ vibration damper
Wheels number 4 + 1
tire size 5,60-15 6,40-15
tire pressure, kg/cm2 front 1.7/ rear 1.7 front 1.4/ rear 1.4
Suspension front independent, spring, wishbone arm, without front-axle pivot, telescopic double-acting shock absorbers
rear longitudinal half-elliptic springs, telescopic double-acting shock absorbers
Steering gear globoid worm with 2-ridge roller
gear ratio 17
Brakes braking distance, m [yards] -
service (foot) drum brakes, hydraulic to all wheels
parking (hand) drum brakes, mechanical to rear wheels
Filling capacities, liters [gal] fuel tank 35 [9.3] (A-72)
engine cooling system 7.8 (water or antifreeze)
engine lubrication system 4.3 (in summer: industrial oil 50 or AKp-10 and ASp-10; in winter: 70% industrial oil and 30% spindle oil AU mixture or AKp-5 and ASp-5
gearbox housing  1.0 (in summer: MK-22 or MS-24; in winter: MS-14)
axle housing 1.4 (hypoid gear oil)
steering system cylinder 0.15
shock absorbers each front 0.115, each rear 0.200 (50% turbine oil and 50% transformer oil mixture)
air filter -
Carburetor K-59
Electric equipment 12 volts
Accumulator battery 6ST42
Generator [alternator] G22; 16 amps; 200 watt
Relay-regulator RR102
Starter motor ST4; 0.6 hp
Timer-distributor R35-B
Spark plugs A11U
Engine engine type MZMA-407, 4 linear cyl., 4-tact, OHV, carb.
cylinder work order 1-3-4-2
maximum horsepower, hp [kW] 45 [36] @ 4,500 rpm
maximum torque, Nm [lbft] 8.8 [57] @ 2,600 rpm
displacement, liters [cc] 1.36 [1,360]
compression ratio 7.0:1
bore/stroke, mm [in.] 76 [3.00]/ 75 [2.95]
Years of production 1958-1963 1958-1963 (1958-1960)
Units made - 11,890 of all M-410 [not only M-410N] (1,515 of M-411)
Wheel arrangement 4 X 2 4 X 4
Pictures  see below see below

*parameters of MZMA-423N that are different from MZMA-407 are given in (parenthesis).

**parameters of MZMA-411 that are different from MZMA-410N are given in (parenthesis).

***until Januray 1960, these cars had only 3 forward and 1 one reverse speed.

By 1956 the factory designers were able to modernize engine 402 into OHV with aluminum cylinder-head block. Its power increased to from 35 h.p. to 45 h.p. Moskvich-407 follows from Moskvich-402. Also, beginning in January of 1960, 4 speed gear box was made and placed on MZMA-407. Station wagon of this model became Moskvich-423N (rear bench is also foldable). Moskvich-423 did not have horizontal side moldings as Moskvich-423N and M-423N's rear fenders have higher vertical moldings. 1960 version has different radiator grille .In 1960 a face-lift in the form of a new radiator grille was made. Moskvich-407 was the first Soviet car to have a two color body and had success in other countries; in 1959 about 1/3 of cars went to export. 1957-1958 Moskvich-410 (sedan), 1958-1963 410N (sedan) and 1958-1960 Moskvich-411 (station wagon) were made with 4 X 4 wheel arrangement.

Model Years of prod. Vehicle type and wheel arrangement Distinguishing parameters Description Photos

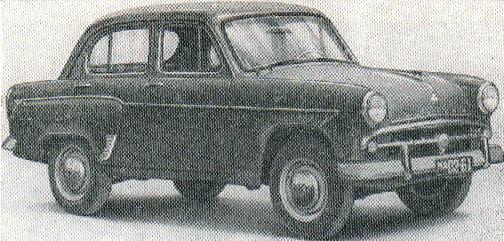

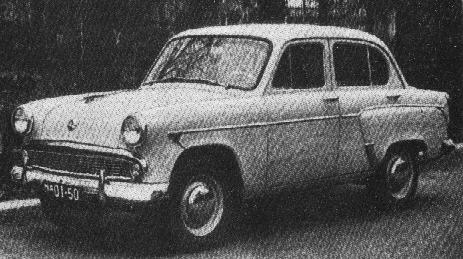

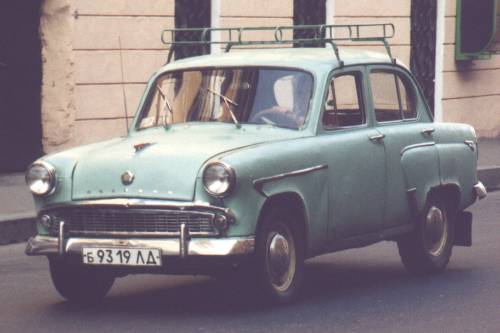

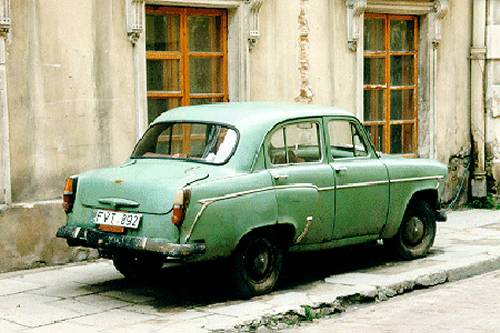

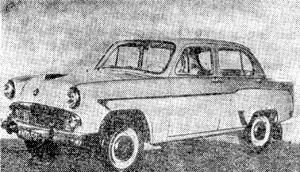

M-407 1958-1963 4 x 2 sedan 4 person capacity, see table above for the rest.

Front seats can be moved in longitudinal direction; front seat backs can be folded forward to facilitate boarding onto the rear seat or reclined backward to create a berth. The car is equipped with a heater, windshield heater, radio, and ashtray.

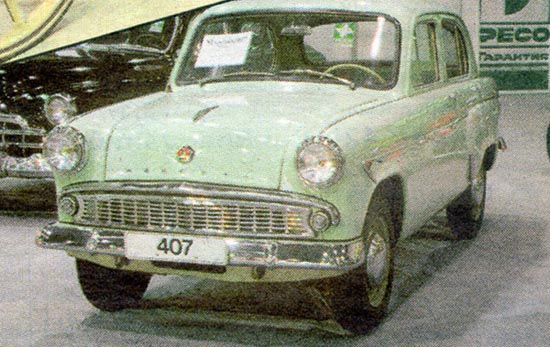

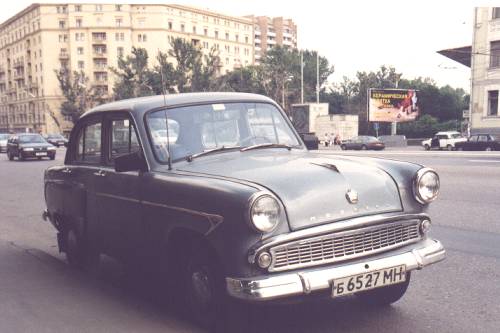

(22 KB color, front view [1960-1963] [31])

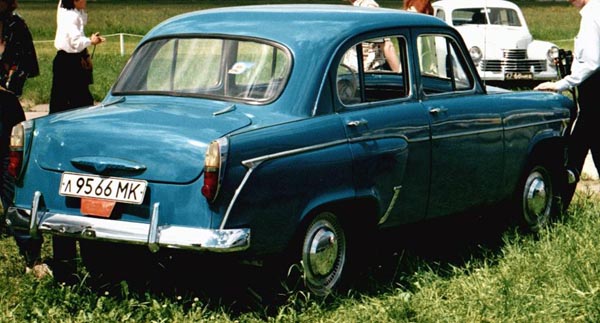

(60 KB color, rear view [1958-1962] [28/7])

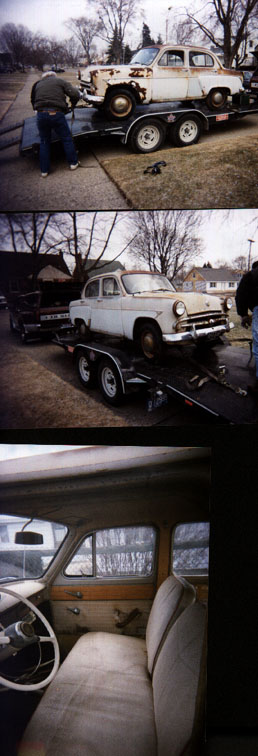

(59 KB color, side, front, interior views [84])

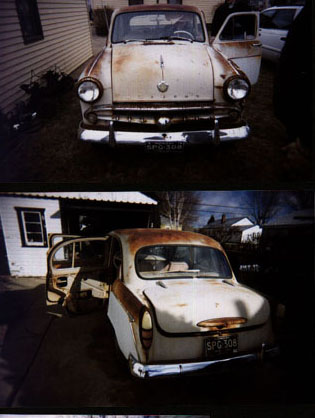

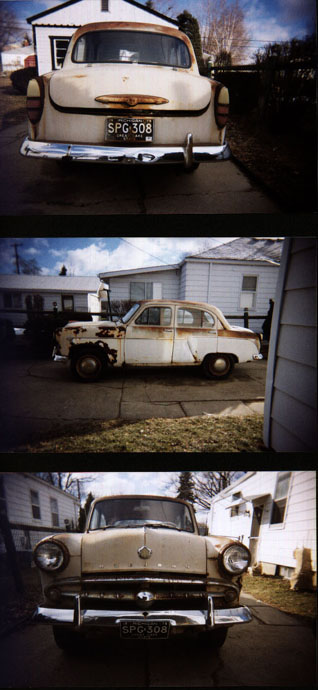

(60 KB color, rear, side, front views [84])
(37 KB color, front, rear views [84])

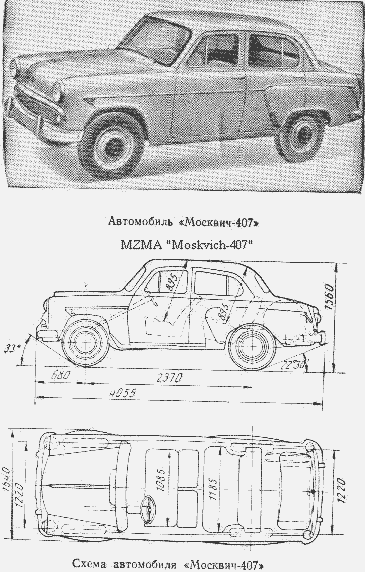

(31 KB color, side view, drawing [106])

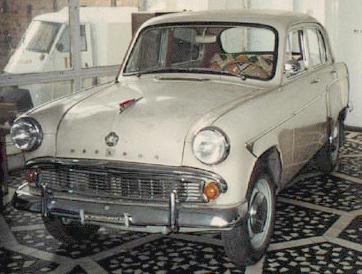

(66 KB color, front view [13])
(17 KB color, side view [10])

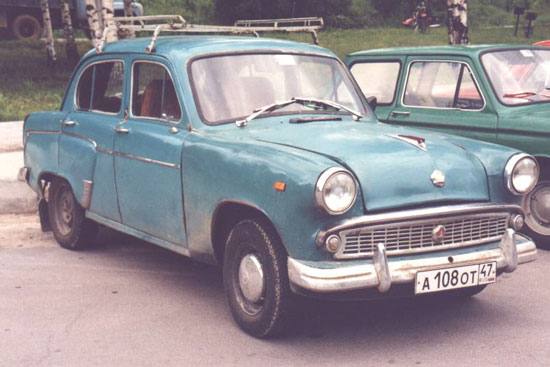

(21 KB color, front view [40/41])
(27 KB color, front view [40/41])
(47 KB color, front view [40/41])
(34 KB color, side view [40/41])

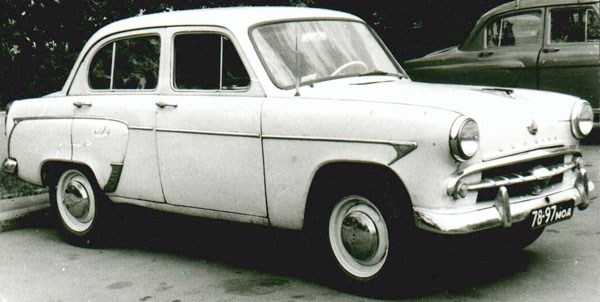

(42 KB b/w, side view [1958-1960] [28/7])
(45 KB b/w, side view [1958-1960] [82])
(25 KB b/w, w/ technical info, side view [1])
(35 KB b/w, side view [1963] [28/7])

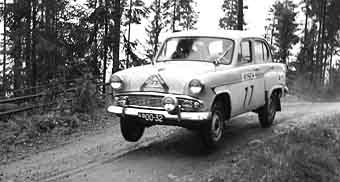

(10 KB b/w, front view, racing car [7])
(35 KB b/w, side view [86])
(34 KB b/w, side view [16])
(48 KB b/w, front view [45])
(13 KB b/w, side view [103])
(12 KB b/w, front view [124])

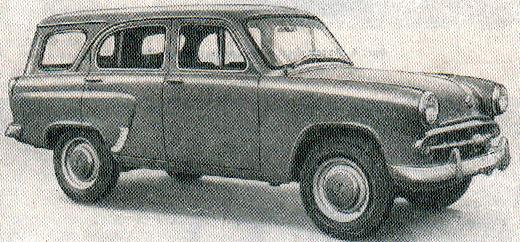

M-423N 1958-1963 4 x 2 station wagon 4 persons + 100 kg payload or 2 persons + 250 kg payload, see above table   (47 KB b/w, side view [1958-1960] [82])

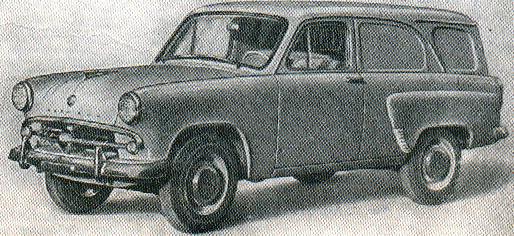

M-430 1958-1963 4 x 2 van  2 persons + 250 kg payload, max speed of 105 km/h. Prohibited from private ownership in USSR. (48 KB b/w, side view  [82])
M-407B   4 x 2 handicapped modification 4 person capacity specially modified controls for handicapped persons outside view same as M-407
M-407M   4 x 2 ambulance  - equipped with first aid kit, waterproof (washable) lining special body color and red cross emblem
M-407T   4 x 2 taxi - - -

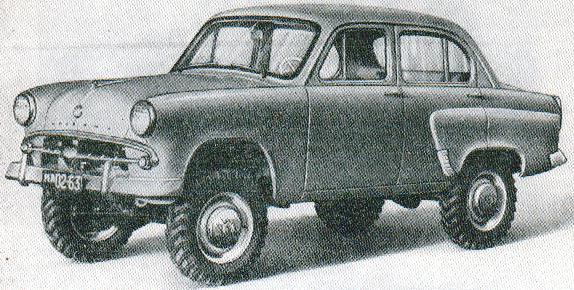

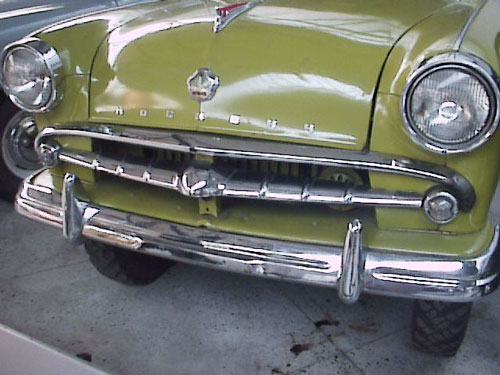

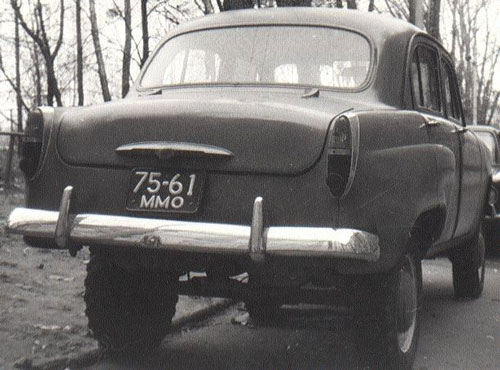

M-410N 1958-1963 4 x 4 sedan 4 person capacity, see above table From 1958, Moskvich-410 was made with M-407 engine under the name 410N. M-410 is equipped with engine and gear box of Moskvich-402 and steering mechanism of GAZ-M-20. (8 KB b/w, front view [1]), (59 KB b/w, side view [82]), (49 KB color, front view [31]), (47 KB b/w, rear view [33])

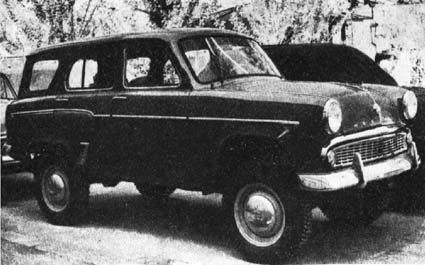

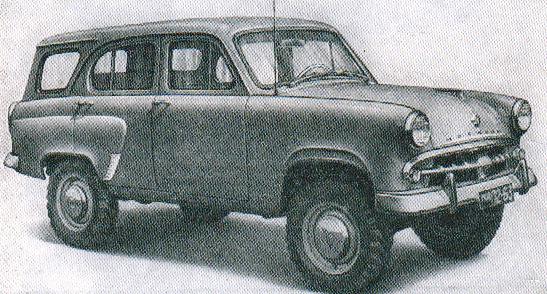

M-411 1958-1960 4 x 4 station wagon 4 person capacity + 100 kg payload or 2 person capacity + 250 kg payload   (30 KB b/w, side view [3]), (56 KB b/w, side view [82])
