RAF-8

SovAvto Website.



Model  RAF-8
Seating 8 seats
Net-weight, kg [lb] 1,420 [3,124]
Full load weight, kg [lb] 1,980 [4,356]
Load weight, kg [lb] -
Total trailer weight, kg [lb] -
Length, mm [in.] 4400 [173]
Width, mm [in.] 1810 [71]
Height, mm [in.] 2050 [81]
Base, mm [in.] 2300 [91]
Minimal clearance, mm [in.] 200 [7.9]
Minimal radius of turn, m [yards] -
Maximum speed, km/h [mi/h] 85 [53]
Maximum horsepower, hp [kW] 45 [34] @ 4,500 rpm
Maximum torque, N·m [lb·ft] 8.8 [57]
Engine displacement, liters [cc] 1.36 [1,360]
Compression ratio 7.0:1
Gear ratios -
Main gear ratio -
Mileage, liters/100km [mi/gal] 13.5 [18]
Acceleration time from 0-100 km/h [62 mi/h], seconds -
Breaking distance, m [yards] -
Fuel tank capacity, liters [gal] 35 [9.3] (A-72)
Years of production 1957
Type of engine MZMA-407, 4 cyl., carb., 4-tact, ohv
Bore/Stroke, mm [in.] 76 [3.00]/ 75 [2.95]
Wheel formula 4 X 2
Pictures  83 KB (color, front view, drawing [106])

13 KB (color, top view [28])

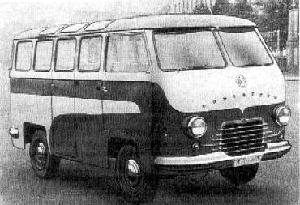

80 KB (b/w, front view [1])

17 KB (b/w, front view [105]

This RAF-08 mini bus is based on MZMA-407. At the very beginning, MZMA engineers appear to have designed and named this bus MZMA-A9, but for some reason production was passed on to RAF.
