| Model | GAZ-3221 | |
| Seating | 9* | |
| Curb weight, kg | TOTAL | - |
| front axle | - | |
| rear axle | - | |
| Gross weight, kg | TOTAL | 3,500 |
| front axle | - | |
| rear axle | - | |
| Payload [carrying capacity] weight, kg | - | |
| Permissible [semi-]trailer weight, kg | - | |
| Length, mm | 5500 | |
| Width, mm | 2000 | |
| Height, mm | 2180 | |
| Wheelbase, mm | - | |
| Track width, mm | front | - |
| rear | - | |
| Minimal ground clearance, mm | under front axle | - |
| under rear axle | - | |
| Minimal radius of turn, m | b/n curbs (outer front wheel) | - |
| b/n walls (extreme exterior dimension | - | |
| Maximum speed, km/h | 115 | |
| Fuel consumption, liters/100km | 11 | |
| Acceleration time from 0-60 km/h, seconds | 15 | |
| Transmission | gearbox | - |
| gearbox ratios | - | |
| main gear ratio | - | |
| transfer case ratio | - | |
| clutch | - | |
| Wheels | number | - |
| tire size | - | |
| tire pressure, kg/cm2 | - | |
| Suspension | front | - |
| rear | - | |
| Steering | gear | - |
| gear ratio | - | |
| Brakes | braking distance, m | - |
| service (foot) | - | |
| parking (hand) | - | |
| Filling capacities, liters | fuel tank | - |
| engine cooling system | - | |
| engine lubrication system | - | |
| gearbox housing | - | |
| axle housing | - | |
| steering system cylinder | - | |
| shock absorbers | - | |
| hydraulic brake drive | - | |
| air filter | - | |
| Carburetor | - | |
| Electric equipment | - | |
| Accumulator battery | - | |
| Generator [alternator] | - | |
| Relay-regulator | - | |
| Starter motor | - | |
| Timer-distributor | - | |
| Spark plugs | - | |
| Engine | engine type | ZMZ 4063.10, carb., 4 inline cyl., 4-tact |
| cylinder work order | - | |
| maximum horsepower, hp | 100 | |
| maximum torque, N·m | - | |
| displacement, liters | 2.3 | |
| compression ratio | 8.2:1 | |
| bore/stroke, mm | - | |
| Years of production | 1996-present | |
| Overall units made | ? | |
| Wheel arrangement | 4 X 2 | |

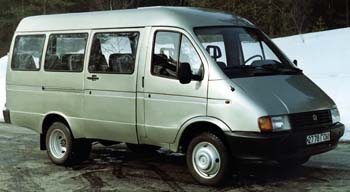

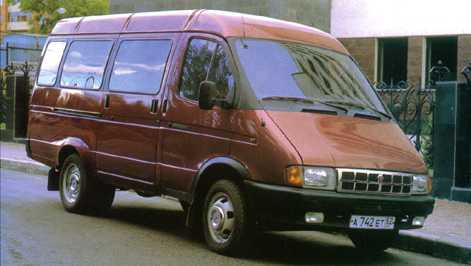

| Pictures | 15 KB (color, side view [11])

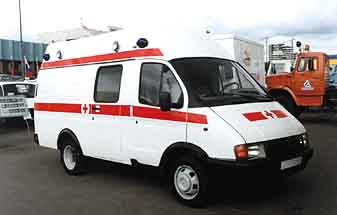

16 KB (color, side view [11]) 16 KB (color, front view [12]) 15 KB (color, side view, taxi [GAZ-32213] [11]) 15 KB (color, side view [GAZ-32213] [11]) 16 KB (color, side view, ambulance [GAZ-32214] [11]) 11 KB (color, side view, ambulance [GAZ-32214] [9]) 16 KB (color, side view, militia [GAZ-32215] [11]) |
|
*GAZ-3221 carries 9 people, GAZ-32212 7 people and GAZ-32213 is for 14 people.
These micro-buses have become very popular in Russia recently. There is a possibility of mounting different engines on these car, here I have given the most common engine stats for each model.
Also see that closely related
GAZ-3302
"Gazel", GAZ-2705
and GAZ-2217
"Sobol".
Click here to see an interesting list of detailed information about the newest generation of GAZes.
