ZIS-151, ZIS-BAV-485

SovAvto Website.



Model  ZIS-151
Seating 3
Net-weight, kg [lb] 5,580 [12,276]
Full load weight, kg [lb] 10,080[22,176]
Load weight, kg [lb] 4,500 [9,900]
Total trailer weight, kg [lb] -
Length, mm [in.] 6930 [273]
Width, mm [in.] 2320 [91]
Height, mm [in.] 2310 [91]
Base, mm [in.] 4225 [166]
Minimal clearance, mm [in.] 260 [10.2]
Minimal radius of turn, m [yards] 11.2 [12.3]
Maximum speed, km/h [mi/h] 60 [37]
Maximum horsepower, hp [kW] 92 [69] @ 2,600 rpm
Maximum torque, Nm [lbft] 31 [201]
Engine displacement, liters [cc] 5.55[5,555]
Compression ratio 6.0:1
Gear ratios 5 gears
Main gear ratio 2 step distributing box
Mileage, liters/100km [mi/gal] 46 [5.1]
Acceleration time from 0-100 km/h [62 mi/h], seconds -
Breaking distance, m [yards] -
Fuel tank capacity, liters [gal] 2 X 150 [2 X 40] A-66
Years of production 1947-1958
Type of engine ZIS-121, 6 cyl., carb., 4-tact, sv
Bore/Stroke, mm [in.] 101.6 [4.00]/ 114.3 [4.50]
Wheel formula 6 X 6

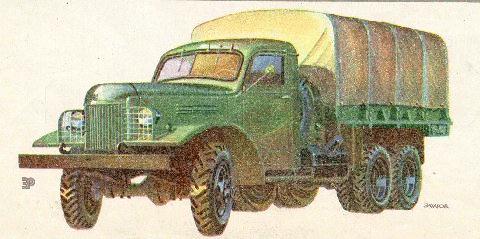

Pictures  29 KB (color, front view, drawing, 1948 [4])

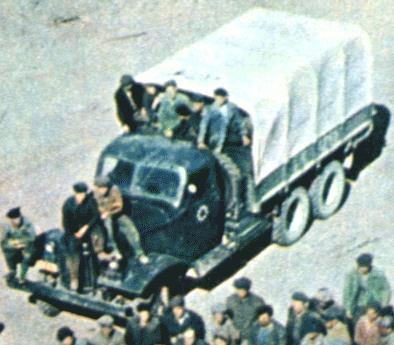

26 KB (color, top view [5])

59 KB (color, side view, drawing [106])

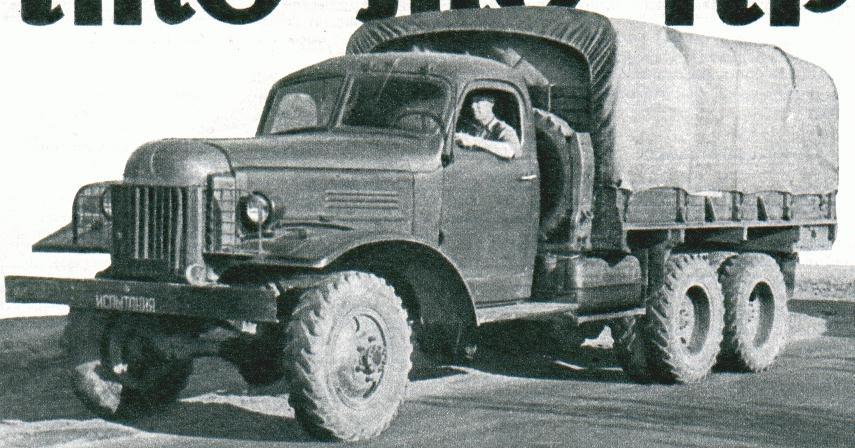

83 KB (b/w, side view, at testing [5])

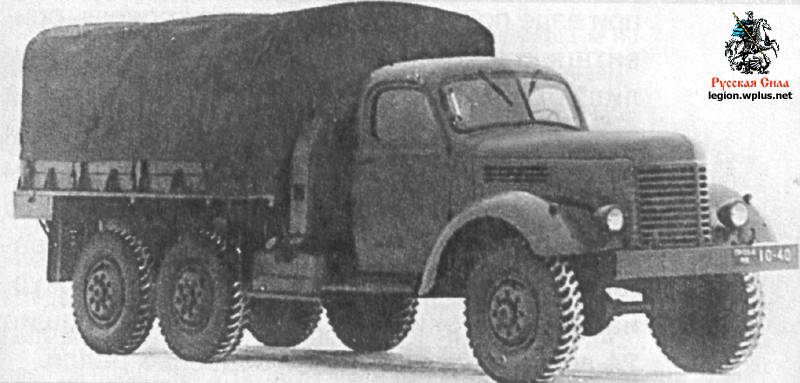

43 KB (b/w, front view, 1947-prototype [4/19])

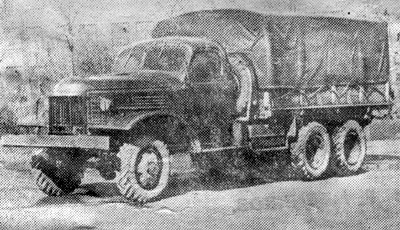

56 KB (b/w, side view, w/ tent [16])

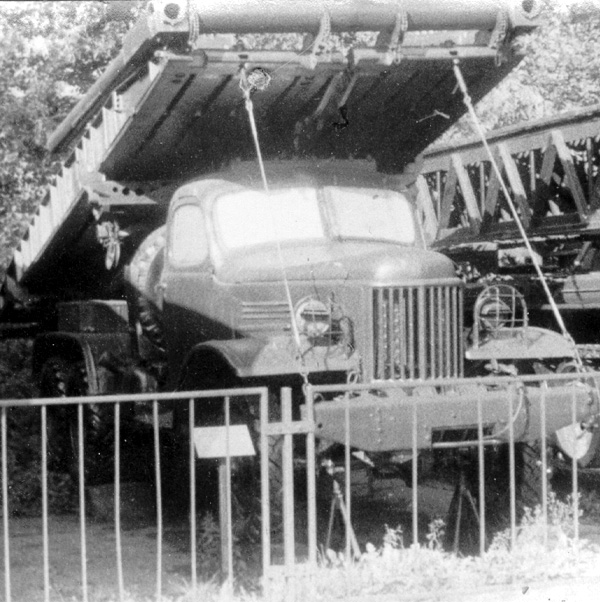

143 KB (b/w, front view, deployable bridge [13])

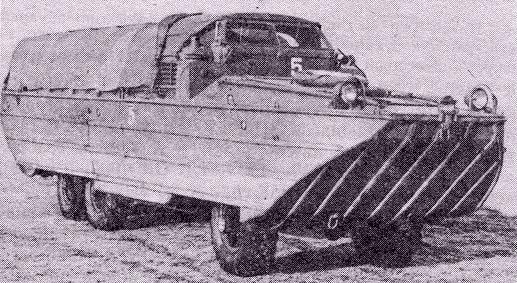

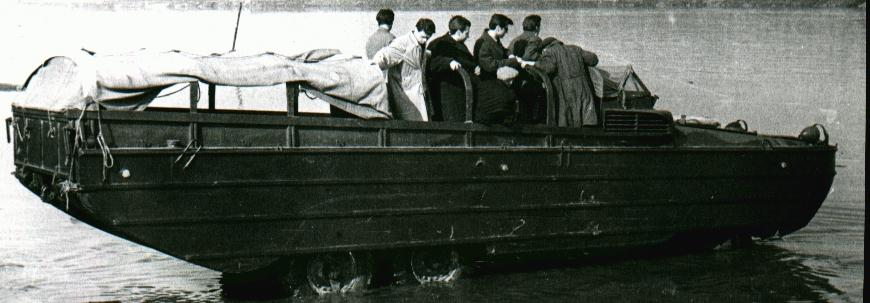

ZIS-485 (BAV) is a ZIL-151 based amphibia (56 KB b/w, front view [28]), (44 KB b/w, side view [28]).

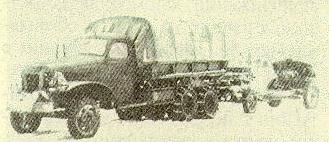

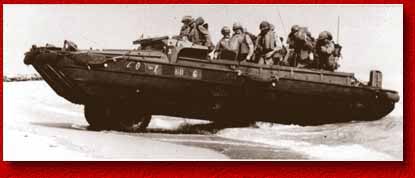

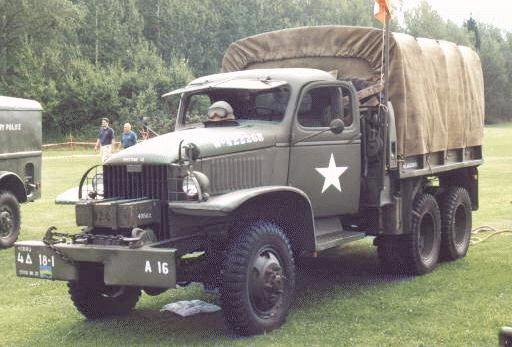

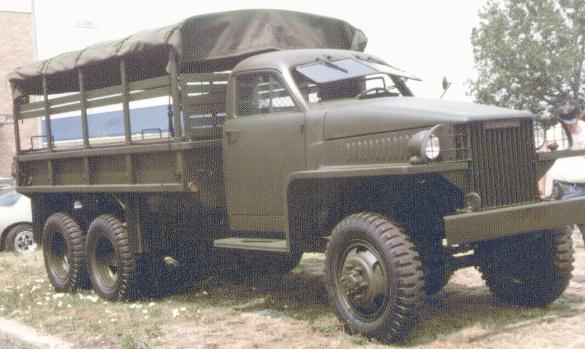

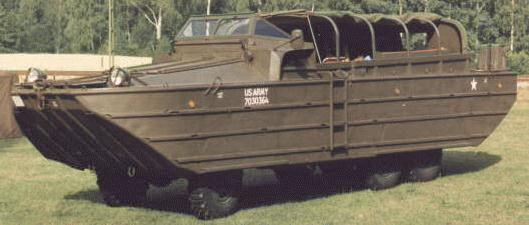

In the first year of its production,1947-early 1948, this ZIS-151 (6 X 6) had a partly wooden cabin and therefore had a somewhat angular shape. Then however, cabins were fully metallic until the end of production in 1958. This truck substituted Studebaker-US6 (41 KB color, side view [69]) in the Red Army. GMC-CCKW-353 (american truck [1941-1945]) (37 KB color, front view [71]) were similar to ZIS-151 and the amphibious version GMC-DUKW-353 (11 KBb/w, side view [70]), (23 KB color, side view [71]) is very similar to ZIS-485 BAV. Another american truck related to ZIS-151 is International-M-5-6 (14 KB b/w, side view [72]). This vehicle, is similar, both in looks [note that both have horizontal radiator grills] and mechanisms, to ZIS-150 (4 X 2) upon which it is based. ZIS-151 was succeeded by ZIL-157 (6 X 6) which in turn looks similar [note that both have vertical grills] to its (4 X 2) counterpart ZIL-164. What also makes ZIS-151 and ZIL-157 different is that ZIS-151 has twin rear wheels, while ZIL-157 has single wheels. As some of the above photos display, some of the later ZIS-151 actually display vertical radiator grills, but what still distinguishes them from ZIL-157 in appearance are the double rear wheels.
