ZIS-110

SovAvto Website.



Model  ZIS-110
Seating 7
Net-weight, kg [lb] 2575 [5665]
Full load weight, kg [lb] 3100 [6820]
Load weight, kg [lb] -
Total trailer weight, kg [lb] -
Length, mm [in.] 6000 [236]
Width, mm [in.] 1960 [77]
Height, mm [in.] 1730 [68]
Base, mm [in.] 3760 [148]
Minimal clearance, mm [in.] 210 [8.3]
Minimal radius of turn, m [yards] 7.4 [8.1]
Maximum speed, km/h [mi/h] 140 [87]
Maximum horsepower, hp [kW] 140 [104] (@ 3,600 rpm)
Maximum torque, Nm [lbft] 40 [260] (@ 2,000 rpm)
Engine displacement, liters [cc] 6.0 [6,000]
Compression ratio 6.85:1
Gear ratios 3 speeds
Main gear ratio -
Mileage, liters/100km [mi/gal] 23 [10.2]
Acceleration time from 0-100 km/h [62 mi/h], seconds -
Breaking distance, m [yards] -
Fuel tank capacity, liters [gal] 80 [21] (A-76)
Years of production 1946-1958
Type of engine ZIS-110, linear 8 cyl., carb., 4-tact, sv
Wheel formula 4 X 2

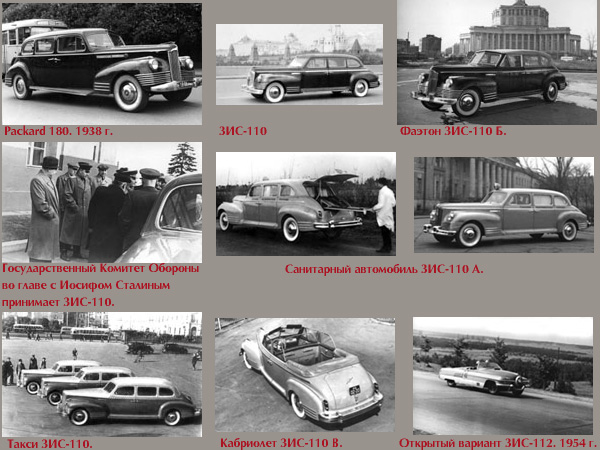

Pictures  110 KB (b/w, wonderful table showing many ZISes [7])

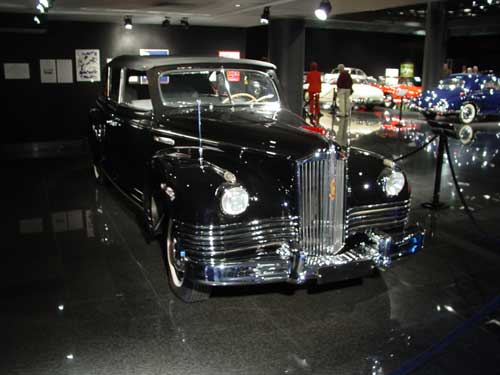

24 KB (color, front view, 1946, restored, in San Francisco museum [30])

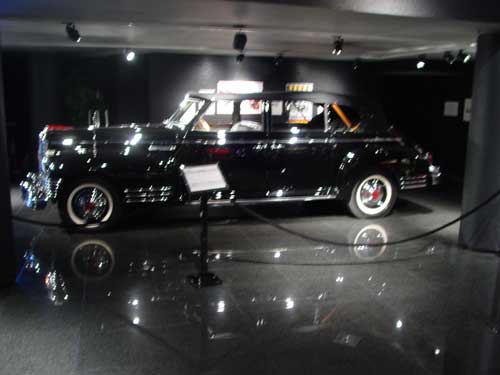

18 KB (color, side view, same as above [30])

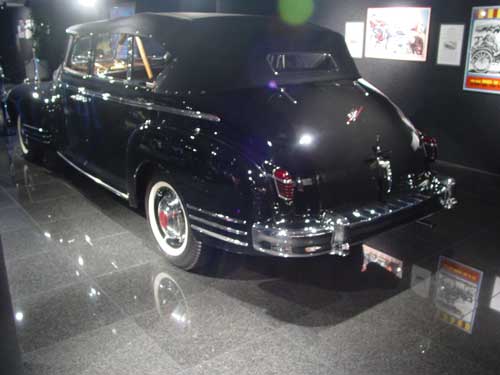

21 KB (color, rear view, same as above [30])

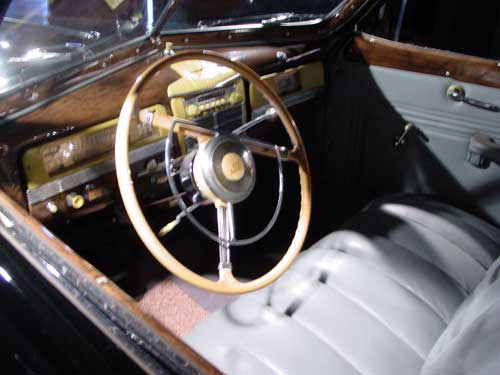

22 KB (color, interior view, same as above [30])

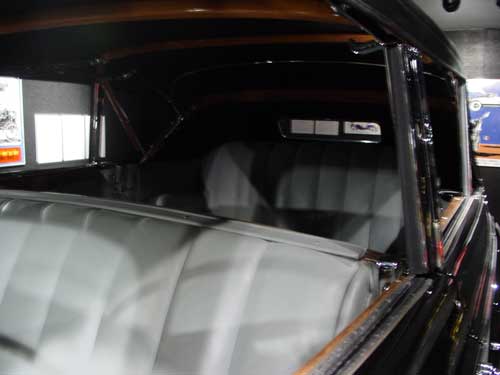

16 KB (color, rear interior view, same as above [30])

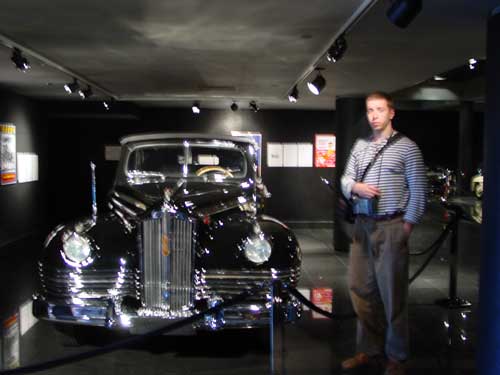

21 KB (color, front view, same as above, myself beside the car [30])

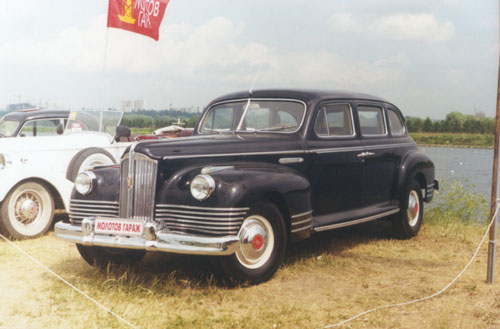

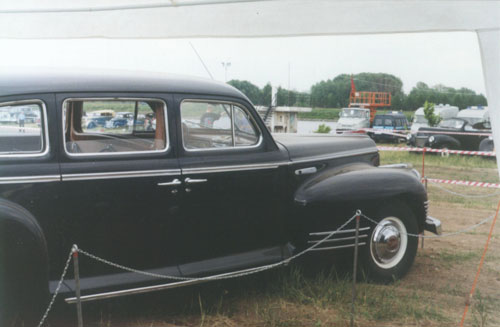

37 KB (color, side view, 1945, restored [122])

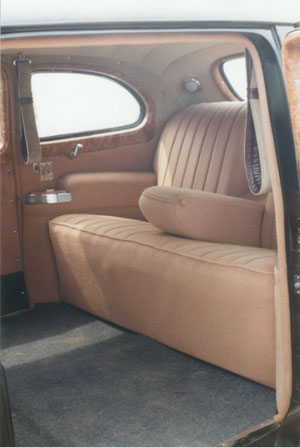

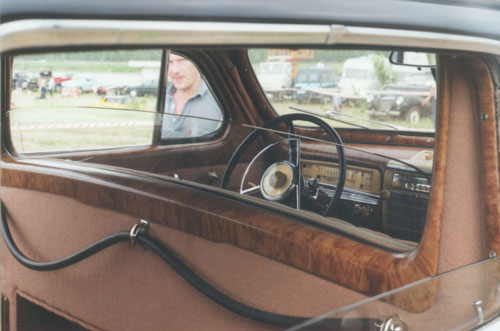

36 KB (color, interior view through closed rear right door [122])

23 KB (color, interior view through open rear left door [122])

29 KB (color, side view [122])

40 KB (color, side view [122])

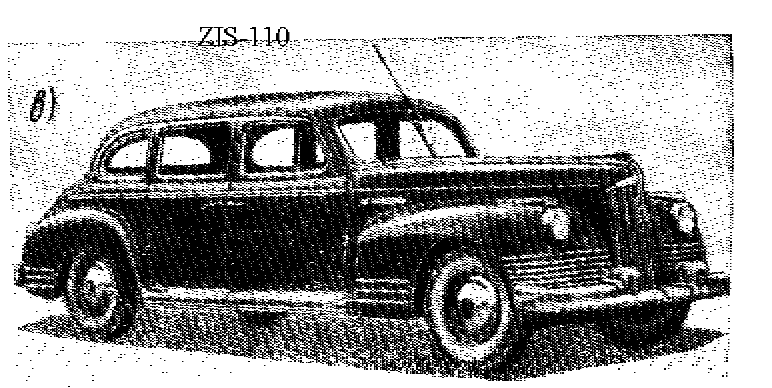

22 KB (color, side view, drawing [106])

54 KB (color, front view [28])

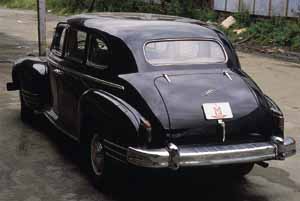

17 KB (color, rear view [28])

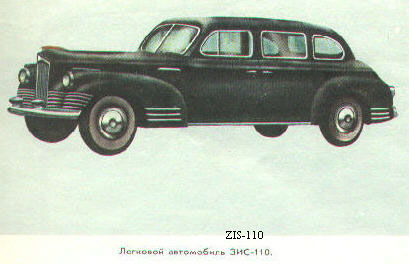

21 KB (b/w, side view [1])

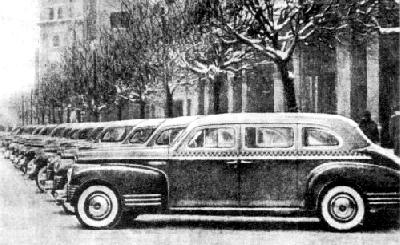

29 KB (b/w, side view, taxi stand [104])

11 KB (color, front view [77])

12 KB (color, rear view [77])

9 KB (color, side view [77])

10 KB (color, front view [77])

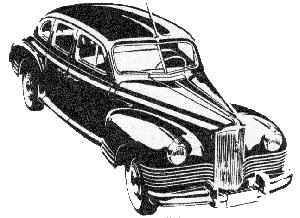

18 KB (b/w, front view, drawing [103])

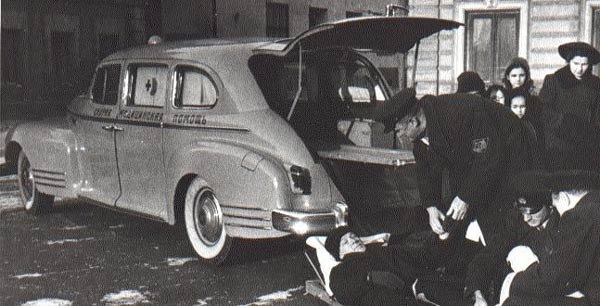

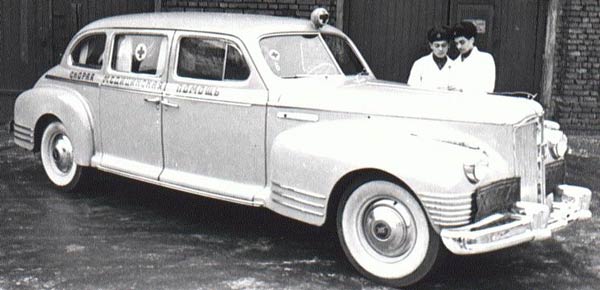

42 KB (b/w, rear view, ZIS-110S ambulance [7])

32 KB (b/w, side view, ZIS-110S ambulance [7])

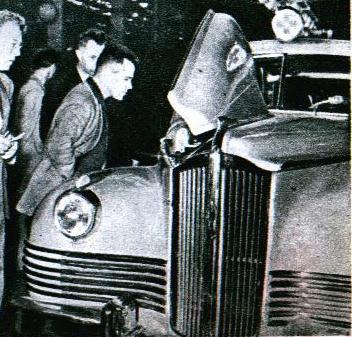

37 KB (b/w, front view, ZIS-110S ambulance [7])

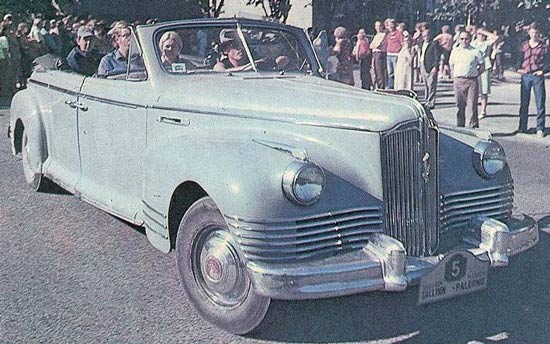

52 KB (b/w, side view, ZIS-110B cabriolet [1950-1958] [7])

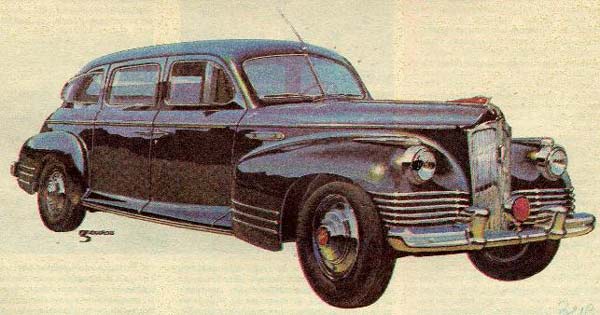

37 KB (color, side view, drawing, ZIS-115 armored [3])

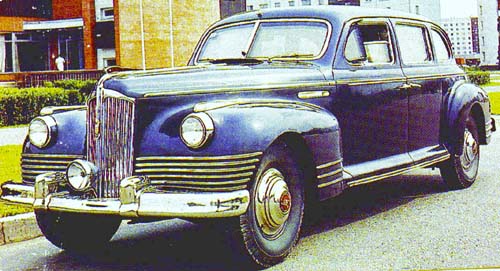

49 KB (color, front view, ZIS-115 armored [76])

This car is based on the american Packard 180 of 1938.

Jan Volgovodov [121] presented me on 4th of March 2000 with a scale model [1:43] of ZIS-110.
