ZIS-101

SovAvto Website.



Model  ZIS-101 (ZIS-101A)*
Seating 7
Net-weight, kg [lb] 2,550 [5,610]
Full load weight, kg [lb] 2,970 [6,534]
Load weight, kg [lb] -
Total trailer weight, kg [lb] -
Length, mm [in.] 5750 [226.4]
Width, mm [in.] 1890 [74.4]
Height, mm [in.] 1870 [73.6]
Base, mm [in.] 3605 [142]
Minimal clearance, mm [in.] 190 [7.5]
Minimal radius of turn, m [yards] 7.7 [8.5]
Maximum speed, km/h [mi/h] 115 [71.4] (125 [77.6])
Maximum horsepower, hp [kW] 90 [67] (@ 2,800 rpm) (110 [82] (@ 3,200 rpm)
Maximum torque, Nm [lbft] 33 [214] (35 [227])
Engine displacement, liters [cc] 5.766 [5,766]
Compression ratio 4.8 (5.5)
Gear ratios 3 speeds with synchronizer
Main gear ratio -
Mileage, liters/100km [mi/gal] 25.5 [9.2]
Acceleration time from 0-100 km/h [62 mi/h], seconds -
Breaking distance, m [yards] -
Fuel tank capacity, liters [gal] 80 [21]
Years of production 1936-1941 (1940-1941)
Type of engine linear 8 cyl., carb., 4-tact., cast-iron (aluminum), sv
Wheel formula 4 X 2

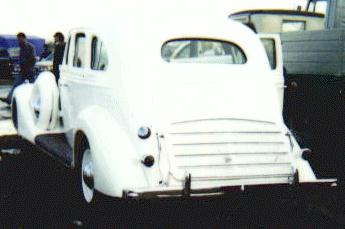

Pictures 12 KB (b/w, rear view [4])

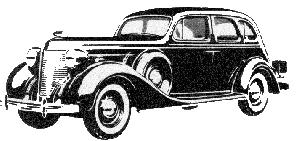

92 KB (color, front view, drawing [106])

6 KB (color, side view of scale model ambulance [74])

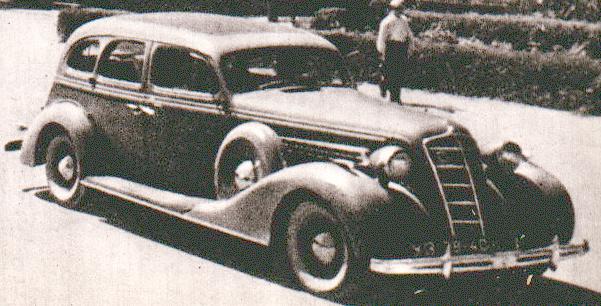

49 KB (b/w, side view [5])

103 KB (b/w, front view, Stalin's inspection [75])

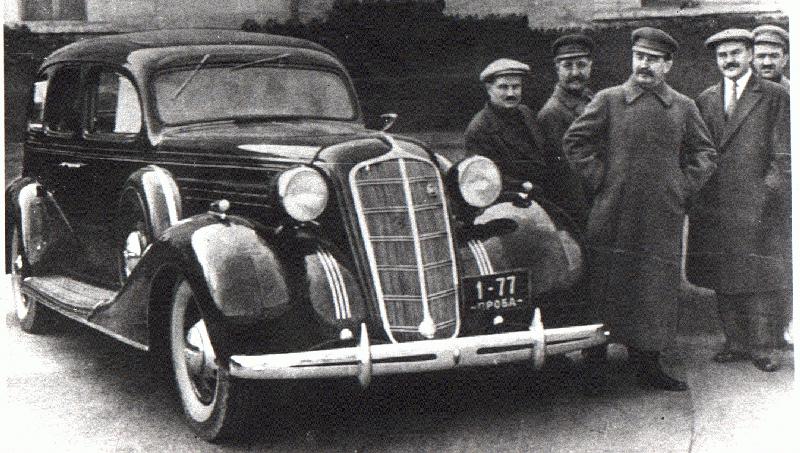

89 KB (b/w, front view, in Kremlin, people on the picture (from left to right): I.A.Lihachov (director of ZiS), G.K.Ordjenikidze ("Sergo") (narkom [minister] of heavy industry), I.V.Stalin (secretary general of the USSR), V.M.Molotov (narkom of foreign affairs), A.I.Mikoyan (narkom of trade) [75])

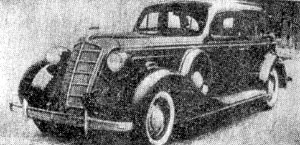

27 KB (b/w, front view [16])

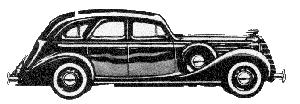

9 KB (b/w, side view, drawing [103])

16 KB (b/w, side view, villagers are looking at the car going on marathon from Moscow to Kiev. [104])

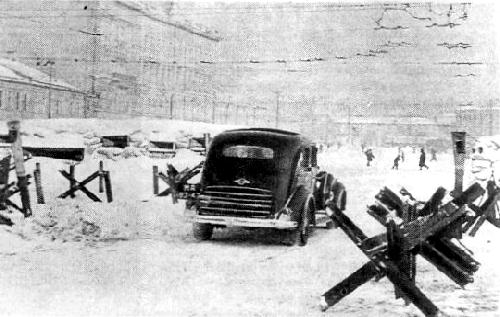

35 KB (b/w, rear view, winter of 1941 in Moscow [4])

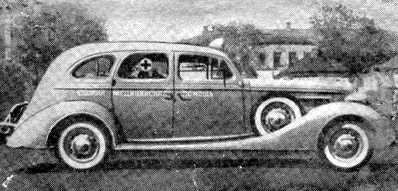

42 KB (b/w, side view ZIS-101 ambulance [7])

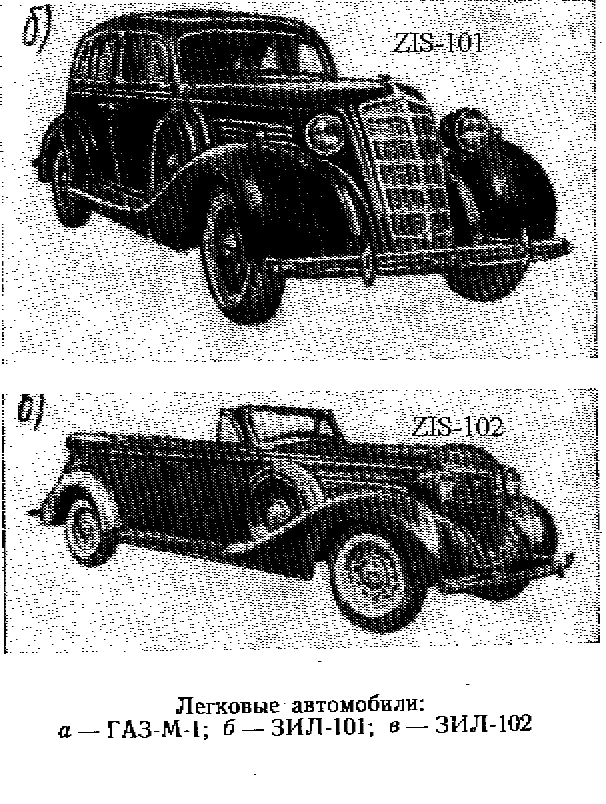

31 KB (b/w, side views of ZIS-101 and ZIS-102 [1])

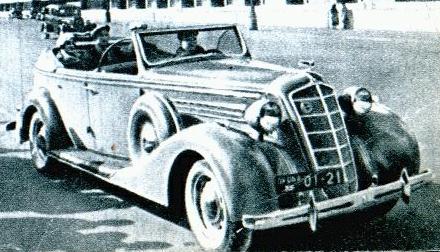

39 KB (b/w, front view ZIS-102 [1939-1941] [28])

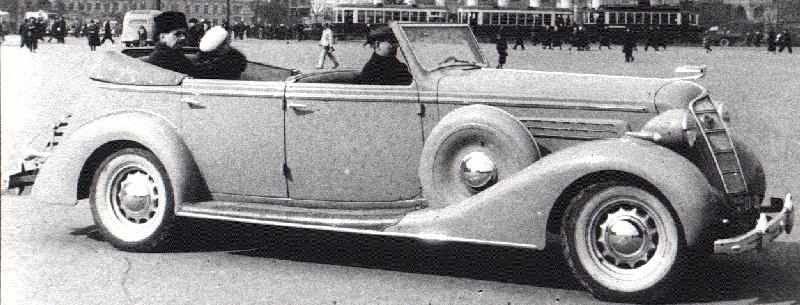

70 KB (b/w, side view ZIS-102 [75])

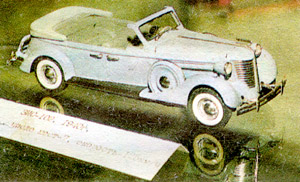

38 KB (color, side view, scale model ZIS-102 [50])

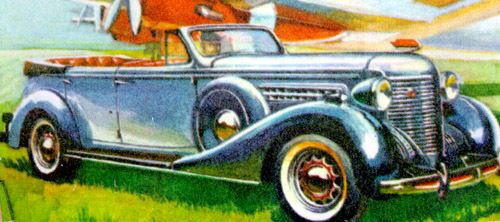

68 KB (color, side view ZIS-102 [4])

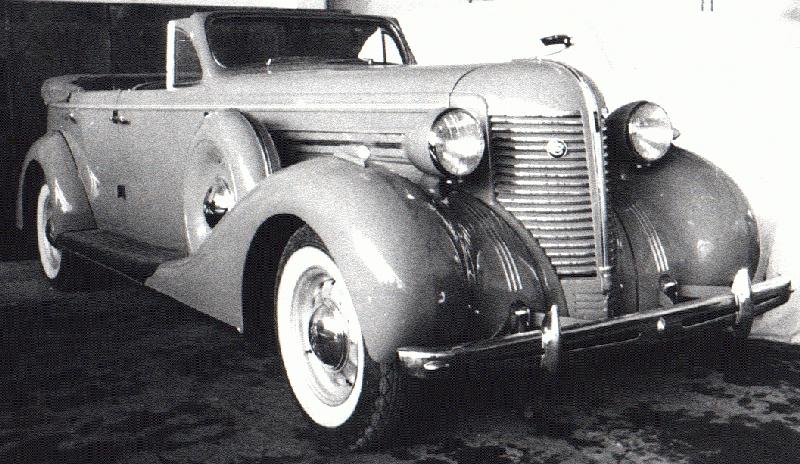

86 KB (b/w, front view ZIS-102A [75])

4 KB (b/w, front view ZIS-101A Sport [1939] [5,766 cc 8-cyl engine, 141 hp, 162 max speed] [3])

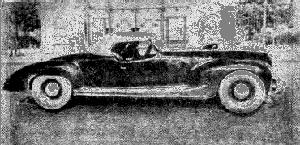

18 KB (b/w, side view ZIS-101A Sport [1939] [16])

7 KB (b/w, side view, drawing ZIS-101A Sport [1939] [103])

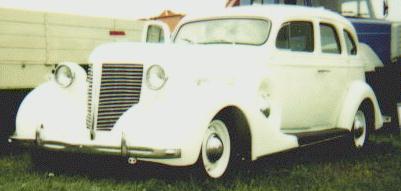

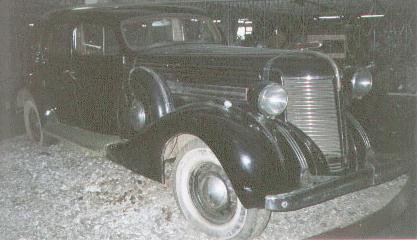

12 KB (color, front view ZIS-101A [1940-1941] [28])

13 KB (color, rear view ZIS-101A [1940-1941] [28])

19 KB (color, side view ZIS-101A [1940-1941] [28])

13 KB (b/w, side view, drawing [ZIS-101A] [103])

* (parenthesis) indicate specifications of ZIS-101A that are different from those of main model ZIS-101.

Overall, 8752 cars were made. The ZIS-101 was the most abundant. It was produced 1936-1941 and had a 90 horsepower engine. Its modification, ZIS-102 [cabriolet], produced 1939-1941, and ZIS-101A, produced 1940-1941, had a more powerful 110 horsepower engine, while the rest of paprameters of ZIS-102 were the same as those of ZIS-101A. The difference was explained by use of aluminum parts with a higher compression ratio, i.e. instead of former 4.8:1, the ratio was changed to 5.5:1. ZIS-101A Sport was a racing car, so very little of them were made, perhaps as few as 1 or 2. There was also an ambulance version of ZIS-101 and ZIS-101S armoured vehicle [mass=7,300 kg [16,060 lb.], max v.=140 km/h [87 mi/h], horsepower=180 h.p. [134 kW]]
