UAZ-469, UAZ-469B

SovAvto Website.



Model  UAZ-469B (UAZ-469)*
Seating 6 (7)
Net-weight, kg [lb] 1,540 [3,388] (1,650 [3,630])
Full load weight, kg [lb] 2,290 [5,038] (2,450 [5,390])
Load weight, kg [lb] -
Total trailer weight, kg [lb] -
Length, mm [in.] 4025 [158]
Width, mm [in.] 1785 [70]
Height, mm [in.] 1990 [78] (2050 [81])
Base, mm [in.] 2380 [94]
Minimal clearance, mm [in.] 220 [8.7] (300 [11.8])
Minimal radius of turn, m [yards] -
Maximum speed, km/h [mi/h] 100 [62]
Maximum horsepower, hp [kW] 75 [56] @ 4,000 rpm
Maximum torque, N·m [lb·ft] 25.6 [166] @ 2,200 rpm
Engine displacement, liters [cc] 2.45 [2,446]
Compression ratio 6.7:1
Gear ratios 4 speeds
Main gear ratio -
Mileage, liters/100km [mi/gal] 10.6 [22] city cycle
Acceleration time from 0-100 km/h [62 mi/h], seconds -
Breaking distance, m [yards] 6.1 [6.7] from 32 km/h [20 mph]
Fuel tank capacity, liters [gal] 39 X 2 [10.3 X 2] A-76
Years of production 1972-1985 (1973-1985)
Type of engine UMZ-451M (UMZ-451MI), 4I cyl., carb., ohv
Bore/Stroke, mm [in.] 92 [3.62]/ 92 [3.62]
Wheel formula 4 X 4

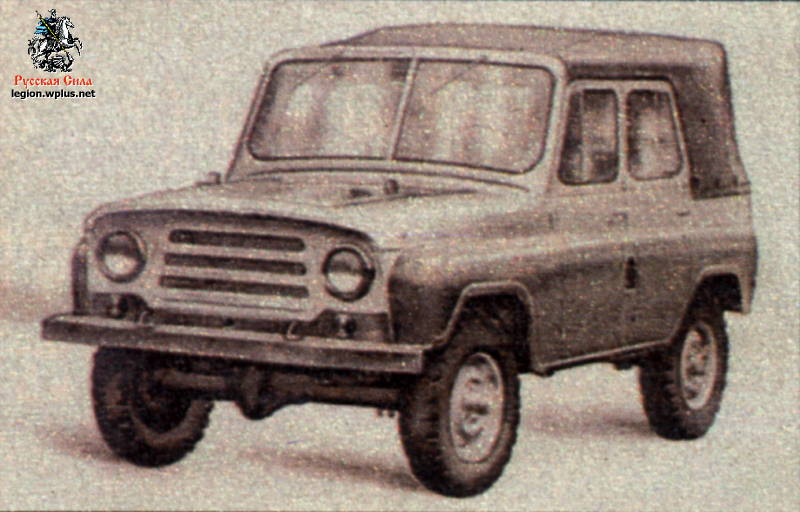

Pictures  62 KB (b/w, front view, 1962 projection of UAZ-469 [64])

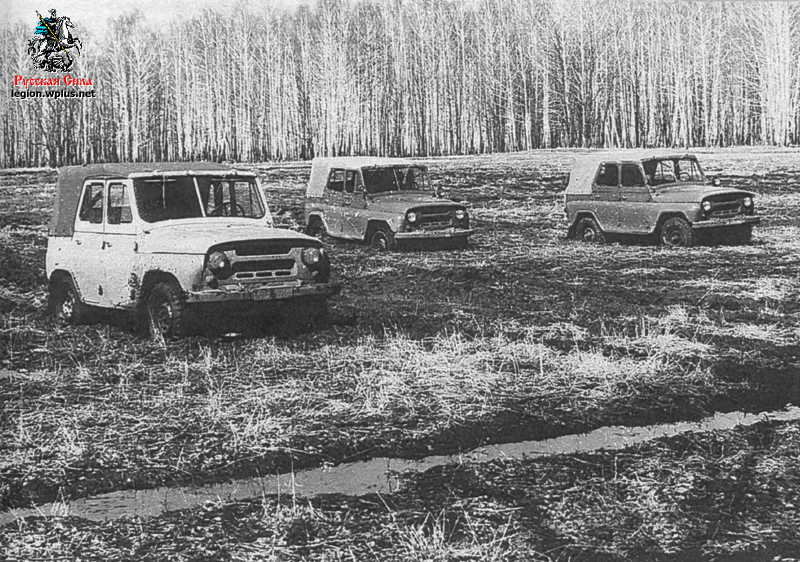

96 KB (b/w, side view, on testing field, late 1960s [4])

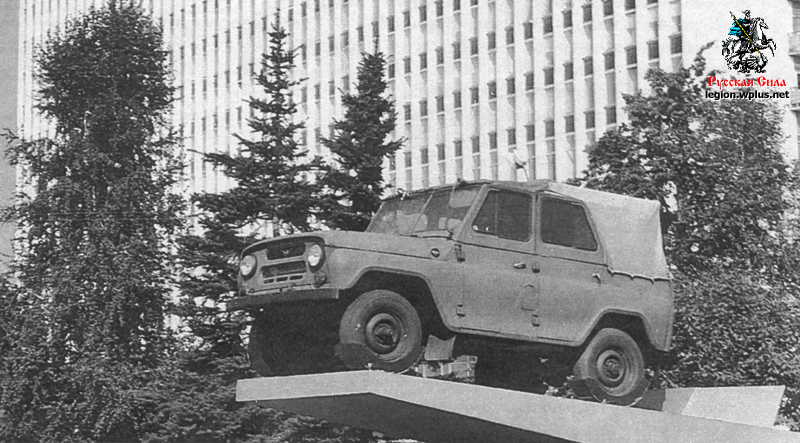

59 KB (b/w, side view, first jeep in front of UAZ entrance [4])

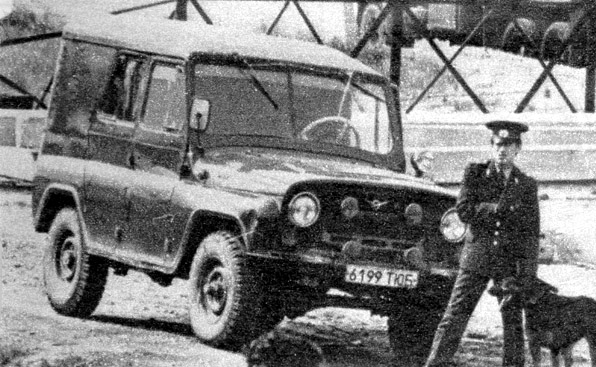

100 KB (b/w, front view, w/ man and dog [5])

40 KB (b/w, side view [UAZ-469] [3])

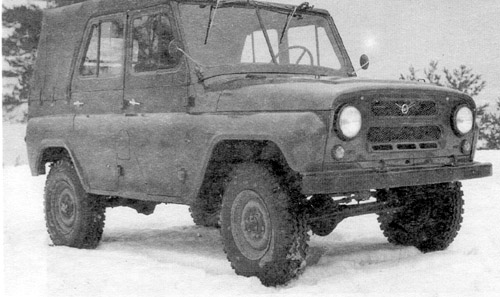

47 KB (b/w, side view [UAZ-469B] [3])

89 KB (color, side view [UAZ-469B] [106])

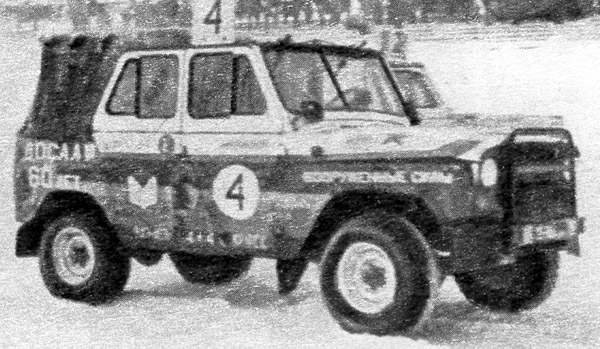

93 KB (b/w, side view, competition jeep [4])

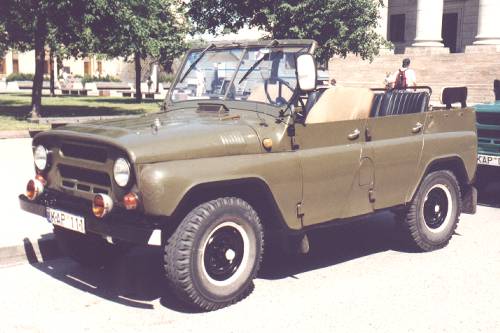

30 KB (color, side view, w/out tent [40/41])

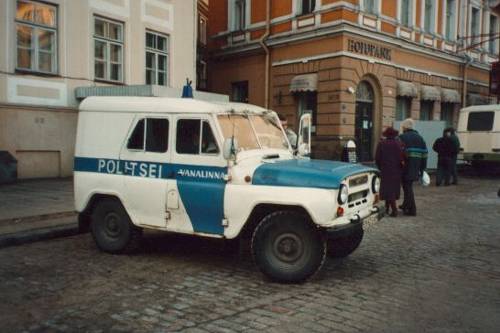

27 KB (color, side view, "Politsei" jeep in Estonia [40])

20 KB (color, front view [7/10])

104 KB (color, front view, comic picture, open Army jeep [4])

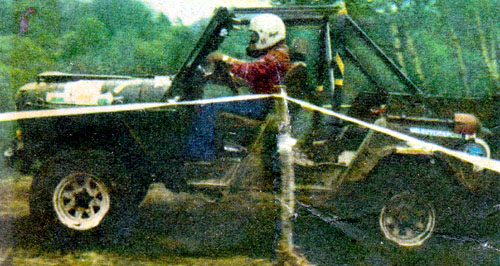

69 KB (color, side view, rally jeep [50])

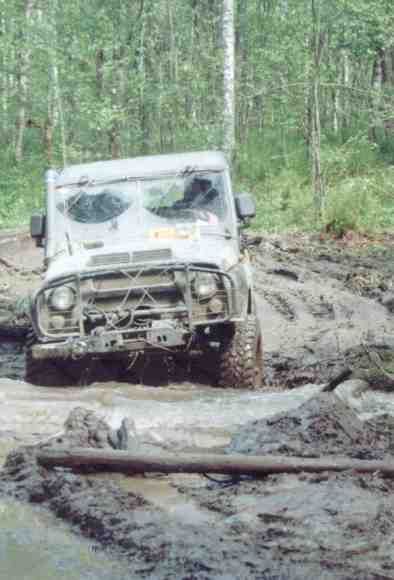

20 KB (color, front view, self-made rally jeep [155])

* (parenthesis) indicate technical parameters of UAZ-469 that are different from those of UAZ-469B.

UAZ-469 is the most famous UAZ vehicle. Decades of use by the Soviet military forces, agriculture complex, and Militia have proven that this is a very reliable and at the same time affordable jeep. The engine is based on GAZ-24. Maximum ascent angle is 30 degrees.
