PAZ-651 (KAvZ-651)

SovAvto Website.



Model  PAZ-651 same as KAvZ-651
Seating 20 (24 total)
Net-weight, kg [lb] 3,550 [7,810]
Full load weight, kg [lb] 5,550 [12,210]
Load weight, kg -
Total trailer weight, kg -
Length, mm [in.] 6170 [243]
Width, mm [in.] 2360 [93]
Height, mm [in.] 2750 [108.3]
Base, mm [in.] 3300 [130]
Minimal clearance, mm [in.] 245 [9.6] (under rear axle)
Minimal radius of turn, m [yards] 8.1 [8.9]
Maximum speed, km/h [mi/h] 70 [43.5]
Maximum horsepower, h.p. [kW] 70 [52] (@ 2,800 rpm)
Maximum torque, N·m [lb·ft] 20.5 [133] (@ 1,600 rpm)
Engine displacement, liters [cc] 3.48 [3,480]
Compression ratio 6.2:1
Gear ratios 6.40/3.09/1.69/1.00/R-7.82
Main gear ratio 6.67
Mileage, liters/100km [mi/gal] 22 [10.7] (@ 45 km/h {30 mi/h}]
Breaking distance, m -
Fuel tank capacity, liters [gal] 105 [27.7] (A-66)
Years of production 1950-1958-1964-1971
Type of engine GAZ-51, carb., 6 cyl., 4-tact, sv
Wheel formula 4 X 2

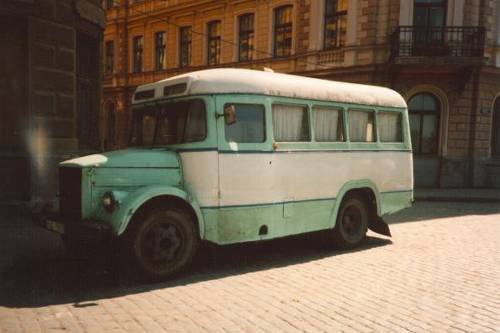

Pictures 44 KB (b/w, front view [5])

4 KB (b/w, at a factory, front view [80])

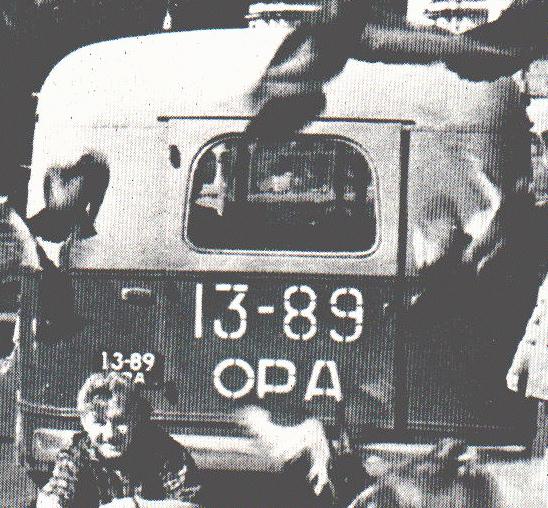

75 KB (b/w, rear view [7/28])

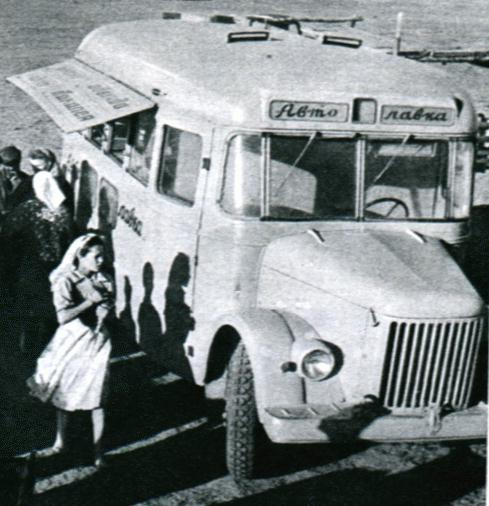

9 KB (b/w, front view, open version on the left [7/28])

10 KB (b/w, side view, for transportation of clothes [104])

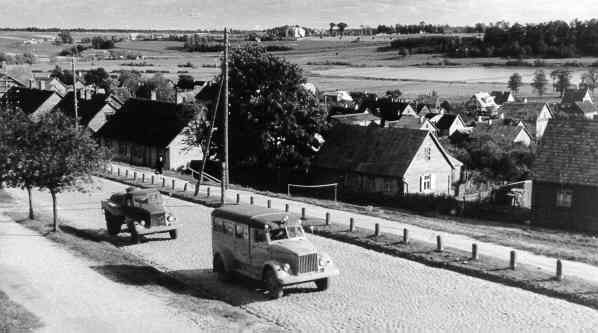

15 KB (b/w, front view, bus in center [114])

76 KB (color, side view, drawing [KAvZ-651B] [106])

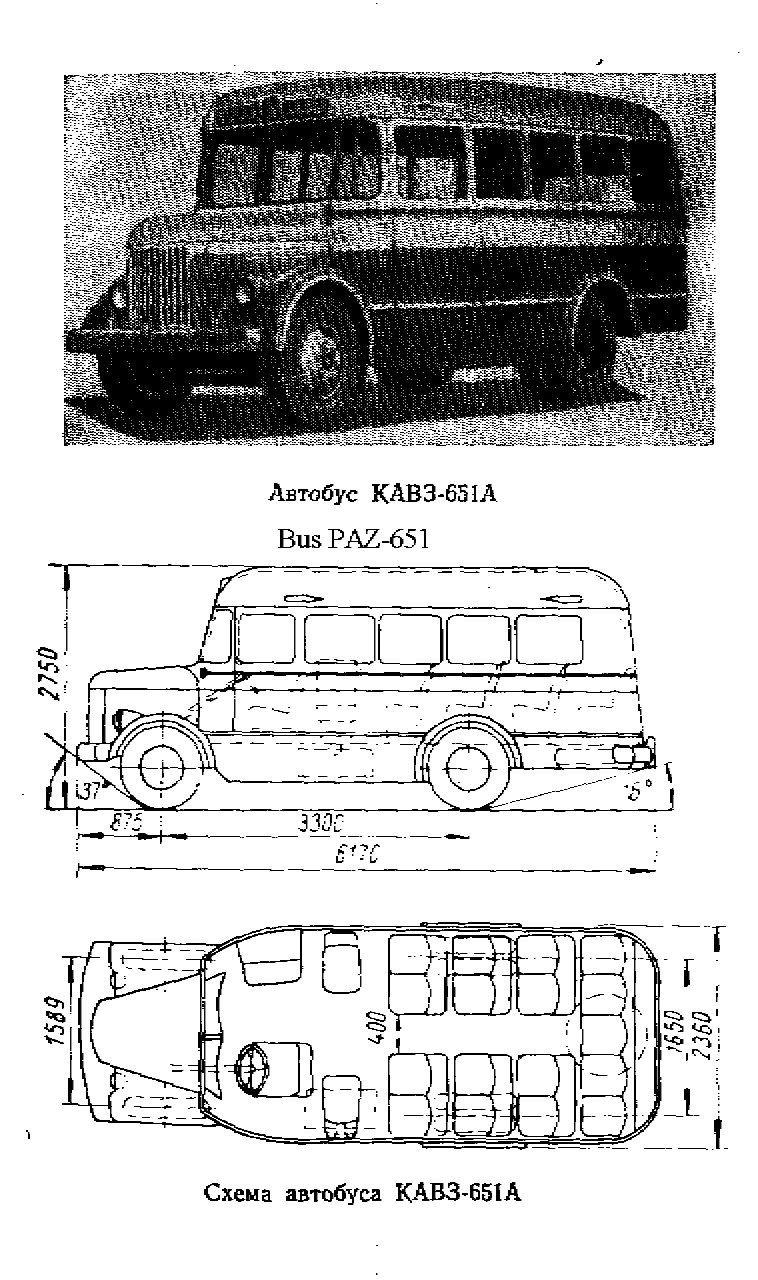

44 KB (b/w, side view, w/ technical info [KAvZ-651] [1])

20 KB (color, front view [KAvZ-651] [28])

13 KB (b/w, side view [KAvZ-651] [104])

21 KB (color, side view [KAvZ-651A] [40])

3 KB (color, front view [PAZ-653 ambulance] [7/28])

23 KB (b/w, side view [PAZ-653 ambulance] [114])

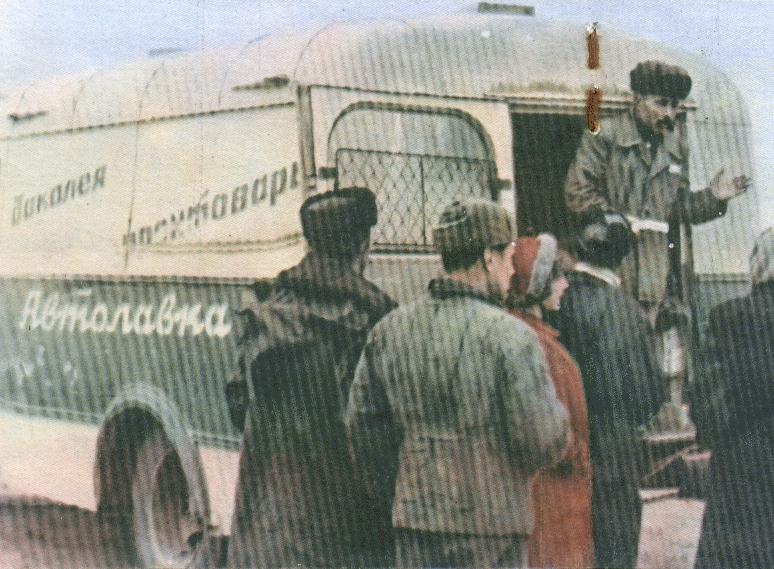

81 KB (color, rear view [PAZ-659 closed van] [7/28])

Production at KAvZ started in 1950, while at PAZ it began in 1952. This bus, although usually referred to as PAZ-651 is identical to KAvZ-651 [Kurganskiy Avtobusny Zavod - Kurgansk Bus-manufacturing Plant - KAvZ]. They have no difference whatsoever, but were produced at two different factories. From what I understand, this bus was first produced only at PAZ until 1958. Then, in 1958, KAvZ took the production line from PAZ. KAvZ produced modification KAvZ-651 1961-1971. A modification of this bus, PAZ-653 was an ambulance, weighing 400 kg [880 lbs] less due to lack of equipment for passengers, produced 1950-1956 and PAZ-657 and PAZ-659 vans, produced until 1958. These vans were often used as portable stores. All these buses are based on GAZ-51



Page created on Tuesday, February 02, 1999. Page last updated on Tuesday, February 26, 2002 10:44:32 PM EST.
