Model GAZ-M-72
Seating 5
Curb weight, kg TOTAL 1,665
front axle -
rear axle -
Gross weight, kg TOTAL 2,040
front axle -
rear axle -
Payload [carrying capacity] weight, kg -
Permissible [semi-]trailer weight, kg -
Length, mm 4665
Width, mm 1895
Height, mm 1790
Wheelbase, mm 2712
Track width, mm front -
rear -
Minimal ground clearance, mm under front axle -
under rear axle 210
Minimal radius of turn, m b/n curbs (outer front wheel) -
b/n walls (extreme exterior dimension -
Maximum speed, km/h 90
Fuel consumption, liters/100km 14.0
Acceleration time from 0-100 km/h, seconds -
Transmission gearbox 3 speed
gearbox ratios 3.115 / 1.772 / 1.000 / R-3.738
main gear ratio 5.125 (41 and 8 teeth)
transfer case ratio lower - 2.78 / higher - 1.15
clutch one disc, dry
Wheels number 4 + 1
tire size 6,50-16
tire pressure, kg/cm2 -
Suspension front -
rear -
Steering gear cone worm and 2-ridge roller
gear ratio 18.2
Brakes braking distance, m -
service (foot) drum brakes to all wheels w/ hydraulic drive
parking (hand) ?
Filling capacities, liters fuel tank 55 (A-72)
engine cooling system 10.5 (water or anti-freeze)
engine lubrication system 6.0 [in summer-industrial oil 50 (SU) or ASp-5 and AKp-5 oil; in winter-mix 60% industrial oil 50 (SU) and 40% of spindle oil.
gearbox housing  0.9 (transmission oil)
axle housing 0.75 front / 0.75 rear (transmission oil)
steering system cylinder -
shock absorbers -
hydraulic brake drive -
air filter -
Carburetor K-22E
Electric equipment 12 volts
Accumulator battery 6ST54
Generator [alternator] G20; 18 amps; 225 watts
Relay-regulator RR20-B
Starter motor ST20-B; 1.7 h.p.
Timer-distributor R23
Spark plugs M23U
Engine engine type M-20, 4 cylinder, carb., 4-stroke., sv
cylinder work order 1-2-4-3
maximum horsepower, hp 52.0 @ 3600 rpm
maximum torque, Nm 12.5 @ 2200 rpm
displacement, liters 2.12
compression ratio 6.2:1
bore/stroke, mm 82.0 / 100.0
Years of production 1955-1958
Total units made 4677
Wheel arrangement 4 X 4

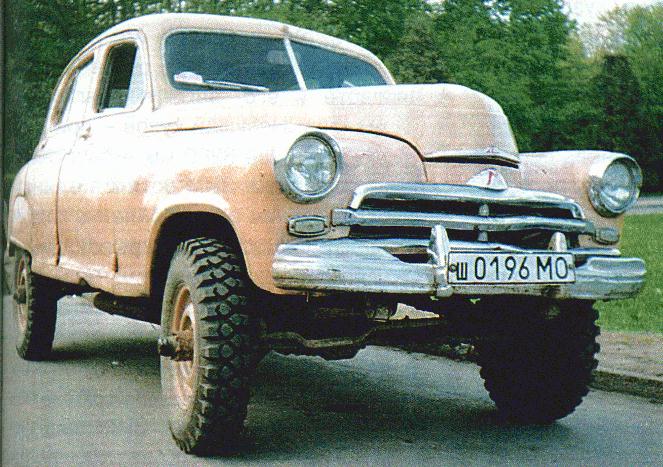

Pictures 80 KB (color, front view [4])

In essence, this vehicle is a combination of GAZ-69 chassis with a GAZ-M-20 "Pobeda" body.
