GAZ-56

SovAvto Website.



Model GAZ-56
Seating 2
Curb weight, kg TOTAL 2,060
front axle -
rear axle -
Gross weight, kg TOTAL -
front axle -
rear axle -
Payload [carrying capacity] weight, kg 1,500
Permissible [semi-]trailer weight, kg -
Length, mm 5350
Width, mm 2250
Height, mm 2000
Wheelbase, mm
Track width, mm front -
rear -
Minimal ground clearance, mm under front axle -
under rear axle -
Minimal radius of turn, m b/n curbs (outer front wheel) -
b/n walls (extreme exterior dimension -
Maximum speed, km/h 80
Fuel consumption, liters/100km -
Acceleration time from 0-100 km/h, seconds -
Transmission gearbox -
gearbox ratios -
main gear ratio -
transfer case ratio -
clutch -
Wheels number -
tire size -
tire pressure, kg/cm2 -
Suspension front -
rear -
Steering gear -
gear ratio -
Brakes braking distance, m -
service (foot) -
parking (hand) -
Filling capacities, liters fuel tank -
engine cooling system -
engine lubrication system -
gearbox housing  -
axle housing -
steering system cylinder -
shock absorbers -
hydraulic brake drive -
air filter -
Carburetor -
Electric equipment -
Accumulator battery -
Generator [alternator] -
Relay-regulator -
Starter motor -
Timer-distributor -
Spark plugs -
Engine engine type based on GAZ-21 engine, carb., 4 cylinder, 4-stroke, sv
cylinder work order -
maximum horsepower, hp 85 @ 3800 rpm
maximum torque, Nm 19.5 @ 2100 rpm
displacement, liters -
compression ratio -
bore/stroke, mm -
Years of production 1956
Overall units made 1 or few (experimental)
Wheel arrangement 4 X 2

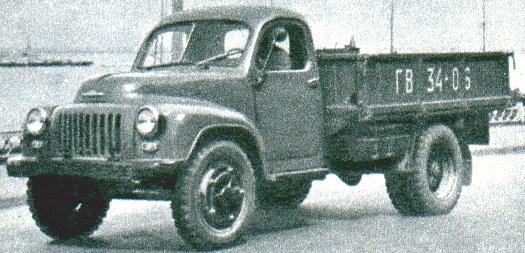

Pictures 38 KB (b/w, side view [7])

This 1,500 kg truck was a prototype, never put on the assembly line.
