| Model | BelAZ-549 |
| Seating | 1 |
| Net-weight, kg [lb] | 68,640 [151,008] |
| Full load weight, kg [lb] | 148,640 [327,008] |
| Load weight, kg [lb] | 80,000 [176,000] |
| Total trailer weight, kg | - |
| Length, mm [in.] | 10260 [404] |
| Width, mm [in.] | 5360 [211] |
| Height, mm [in.] | 4845 [191] |
| Base, mm [in.] | 4300 [169] |
| Minimal clearance, mm [in.] | 720 [28.3] |
| Minimal radius of turn, m [yards] | - |
| Maximum speed, km/h [mi/h] | 60 [37] |
| Maximum horsepower, hp [kW] | 1050 [773] @ 1,500 rpm |
| Maximum torque, N*m [lbs*ft] | - |
| Engine capacity, liters [cm3] | - |
| Compression ratio | - |
| Gear ratios | electrical, w/ DC generator |
| Main gear ratio | - |
| Mileage, liters/100km [mi/gal] | 235 [1.0] |
| Breaking distance, m | - |
| Fuel tank capacity, liters [gal] | - |
| Years of production | 1975-? |
| Type of engine | TMZ-1000D, 6ChN 21/21, diesel, 4-tact, V21? |
| Bore/stroke, mm | - |
| Wheel formula | 4 X 2 |

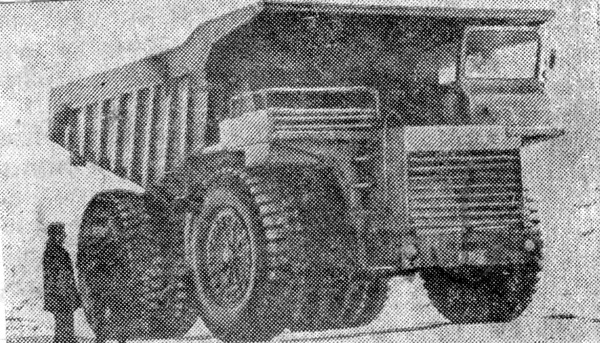

| Pictures | 71 KB (color, side view,
drawing [106]) 144 KB (b/w, front view [16]) |
In 1983, 1000-th BelAZ-549 tipper was assembled.
