| Model | BelAZ-548A |
| Seating | 1 |
| Net-weight, kg [lb] | 26,925 [59,235] |
| Full load weight, kg [lb] | 67,000 [147,400] |
| Load weight, kg [lb] | 40,000 [88,000] |
| Body volume, m3 | 21.0 |
| Length, mm [in.] | 8170 [322] |
| Width, mm [in.] | 3787 [149] |
| Height, mm [in.] | 3800 [150] |
| Base, mm [in.] | 4200 [165] |
| Track width, mm [in.] front/rear | 2800 [110] / 2537 [100] |
| Minimal clearance, mm [in.] | 540 [21.3] |
| Minimal radius of turn, m [yards] | 10.0 [11.0] |
| Maximum speed, km/h [mi/h] | 55 [34] |
| Maximum horsepower, hp [kW] | 520 [383] @ 2,100 rpm |
| Maximum torque, N*m [lbs*ft] | - |
| Engine capacity, liters [cm3] | 22.3 [22,300] |
| Compression ratio | 16.5:1 |
| Gear ratios | hydromechanical, 3 speeds |
| Main gear ratio | - |
| Mileage, liters/100km [mi/gal] | 120 [2.0] |
| Breaking distance, m | - |
| Fuel tank capacity, liters [gal] | 570 [151] |
| Years of production | 1968-? |
| Type of engine | YaMZ-240N, diesel, 4-tact, V12, turbo |
| Bore/stroke, mm | 130/140 |
| Wheel formula | 4 X 2 |

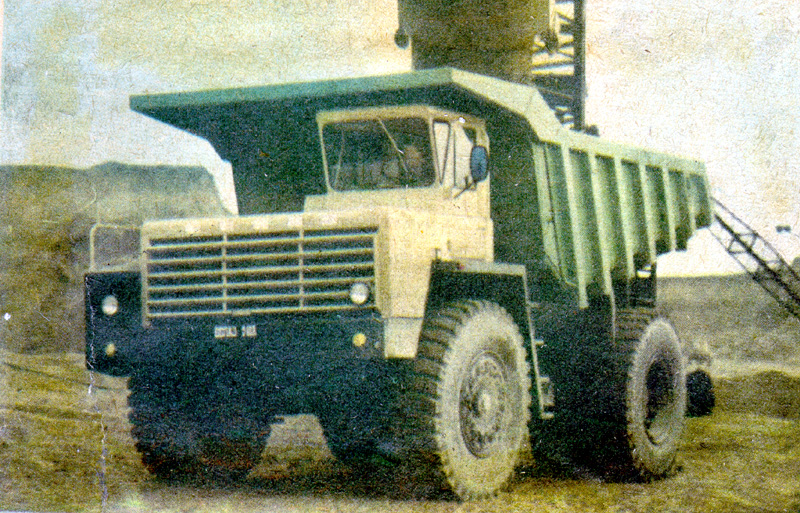

| Pictures | 85 KB (color, front view,
drawing [106]) 342 KB (color, front view [4]) |
