| Model | BelAZ-540A |
| Seating | 1 |
| Net-weight, kg [lb] | 20,925 [46,035] |
| Full load weight, kg [lb] | 48,000 [105,600] |
| Load weight, kg [lb] | 27,000 [59,400] |
| Body volume, m3 | 15.3 |
| Length, mm [in.] | 7250 [23'9"] |
| Width, mm [in.] | 3480 [11'5"] |
| Height, mm [in.] | 3580 [11'9"] |
| Base, mm [in.] | 3550 [11'8"] |
| Track width, mm [in.] front/rear | 2800 [110] / 2400 [94] |
| Minimal clearance, mm [in.] | 475 [14.5] |
| Minimal radius of turn, m [yards] | 8.3 [9.2] |
| Maximum speed, km/h [mi/h] | 55 [34] |
| Maximum horsepower, hp [kW] | 360 [265] @ 2,100 rpm |
| Maximum torque, N*m [lbs*ft] | - |
| Engine capacity, liters [cm3] | 22.3 [22,300] |
| Compression ratio | 16.5:1 |
| Gear ratios | hydromechanical, 3 speeds |
| Main gear ratio | - |
| Mileage, liters/100km [mi/gal] | 100 [2.3] |
| Breaking distance, m | - |
| Fuel tank capacity, liters [gal] | 400 [106] |
| Years of production | 1967-? |
| Type of engine | YaMZ-240, diesel, 4-tact, V12 |
| Bore/stroke, mm | 130/140 |
| Wheel formula | 4 X 2 |

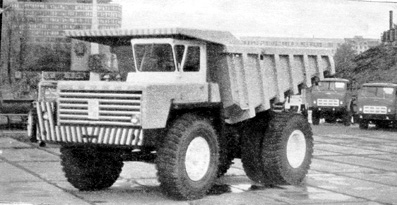

| Pictures | 81 KB (color, side view,
drawing [106]) 43 KB (b/w, front view [4]) |
This dump-truck was made in several modifications: BelAZ-540A and BelAZ-540S had those technical parameters listed above. However, there were also BelAZ-540 and BelAZ-540T which differed in that they had a 375 hp @ 1,650 rpm, 38.17L engine with a maxium torque of 170N*m @ 1,100 rpm and bore/stroke being equal to 150/180 mm.
