ZIL-41041, ZIL-41047

SovAvto Website.



Model  ZIL-41041 ZIL-41047
Seating 5 7
Net-weight, kg [lb] 3030 [6666] 3600 [7920]
Full load weight, kg [lb] 3405 [7490] 4125 [9075]
Load weight, kg [lb] - -
Total trailer weight, kg [lb] - -
Length, mm [in.] 5750 [226.4] 6330 [249]
Width, mm [in.] 2080 [82]
Height, mm [in.] 1500 [59]
Base, mm [in.] 3300 [130] 3880 [153]
Minimal clearance, mm [in.] 170 [6.7]
Minimal radius of turn, m [yards] 8 [8.8] 8.25 [9.1]
Maximum speed, km/h [mi/h] 200 [124] 190 [118]
Maximum horsepower, hp [kW] 315 [235] (@ 4,600 rpm)
Maximum torque, Nm [lbft] 69 [449] (@ 4,000 rpm)
Engine displacement, liters [cc] 7.695 [7,695]
Compression ratio 9.3:1
Gear ratios automatic 3 step gearbox
Main gear ratio -
Mileage, liters/100km [mi/gal] 17 [13.8] @ 90 km/h {56mi/h}/ 21 [11.2] @ 120 km/h {75 mi/h} 22 [10.7] @ 90 km/h {56 mi/h}/ 26 [9.0] @ 120 km/h {75 mi/h}
Acceleration time from 0-100 km/h [62 mi/h], seconds 12 13
Breaking distance, m [yards] - -
Fuel tank capacity, liters [gal] - 120 [31.7]
Years of production 1985-present
Type of engine 8V, OHC, 2 carb.
Wheel formula 4 X 2
Pictures 13 KB (color, front view [122])

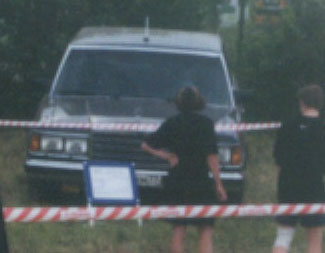

17 KB (color, front view [73])

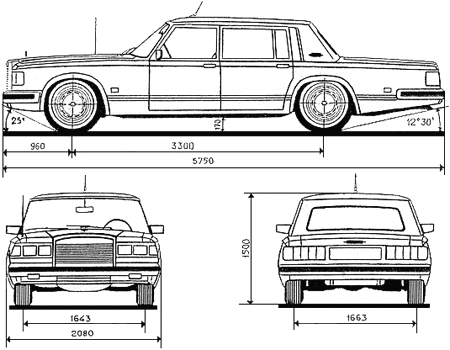

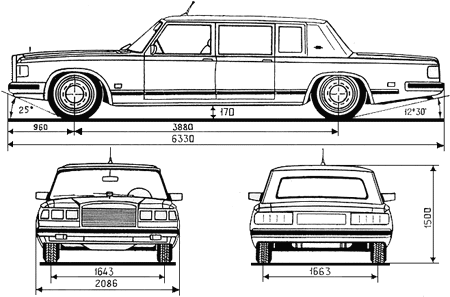

32 KB (b/w, w/ dimensional info [73])

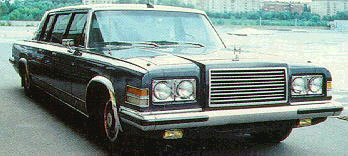

8 KB (color, another front view [73])

28 KB (b/w, w/ dimensional info [73])

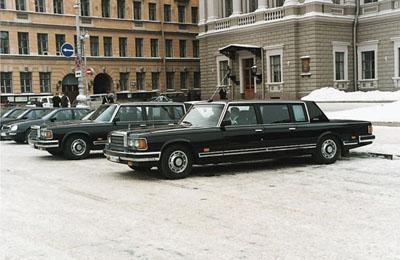

21 KB (color, another front view [7])

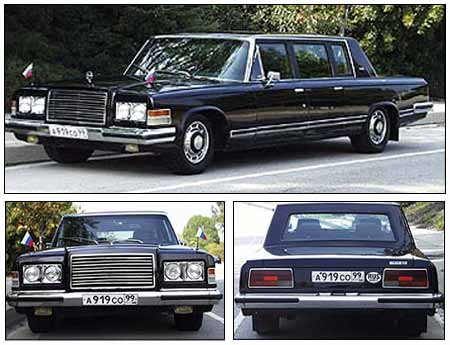

28 KB (color, side, front and rear views [161])

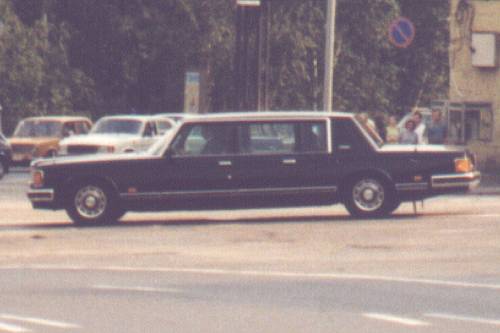

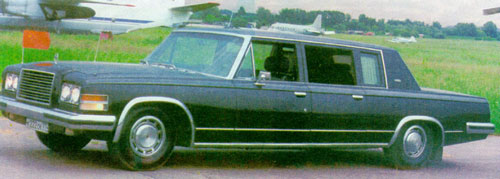

25 KB (color, side view [4])

19 KB (color, side view [41])

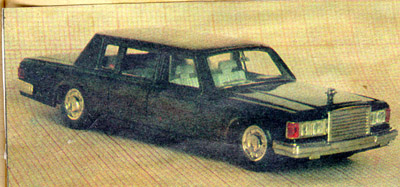

44 KB (color, front view, scale model [7])

29 KB (color, side view [3])

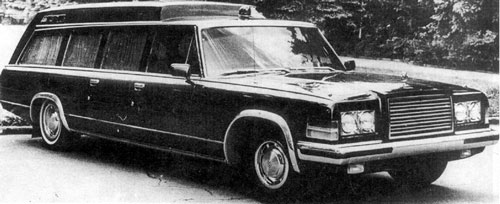

31 KB (b/w, side view, burial vehicle [ZIL-41042] [3])

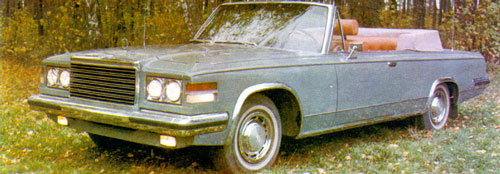

38 KB (color, front view, ZIL-41044 cabriolet [3])
