ZIS-154, ZIS-150 "Aremkuz"

SovAvto Website.



Model  ZIS-154
Seating 34 seats
Net-weight, kg [lb] 8,000 [17,600]
Full load weight, kg [lb] 12,650 [27,830]
Load weight, kg [lb] -
Total trailer weight, kg [lb] -
Length, mm [in.] 9500 [374]
Width, mm [in.] 2500 [98]
Height, mm [in.] 2940 [116]
Base, mm [in.] 5460 [215]
Minimal clearance, mm [in.] 385 [11.2]
Minimal radius of turn, m [yards] 10.7 [11.8]
Maximum speed, km/h [mi/h] 65 [40]
Maximum horsepower, hp [kW] 110 [82] @ 2,000 rpm
Maximum torque, N·m [lb·ft] 48 [311]
Engine displacement, liters [cc] 4.65 [4,650]
Compression ratio 16:1
Gear ratios electrotransmission
Main gear ratio -
Mileage, liters/100km [mi/gal] 65 [3.6]
Acceleration time from 0-100 km/h [62 mi/h], seconds -
Breaking distance, m [yards] -
Fuel tank capacity, liters [gal] 270 [71]
Years of production 1946-1949
Type of engine YaAZ-204A, 2-tact, 4 cyl., diesel
Bore/Stroke, mm [in.] 108 [4.25]/ 127 [5.00]
Wheel formula 4 X 2

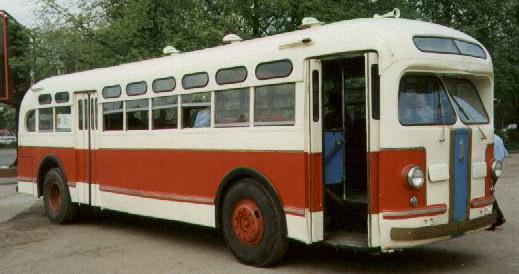

Pictures 29 KB (color, front view [67])

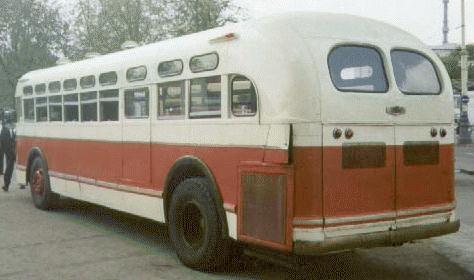

23 KB (color, rear view [67])

85 KB (color, side view, drawing [106])

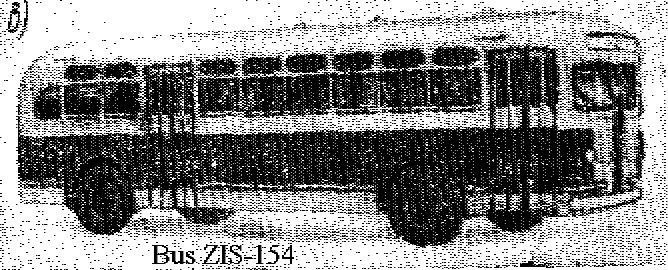

16 KB (b/w, side view [1])

10 KB (b/w, side view, drawing [103])

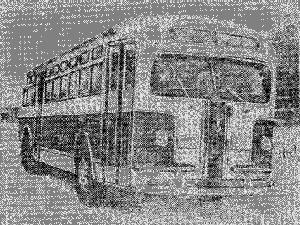

32 KB (b/w, front view, bad quality [16])

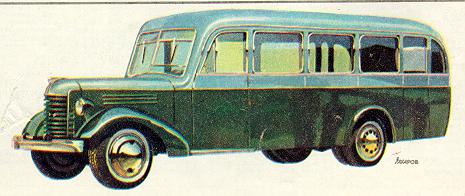

ZIS-150 "Aremkuz" (23 KB color, side view [4]) was a very rare bus.
