| Model | ZIL-114 | ZIL-117 |
| Seating | 7 | 5 |
| Net-weight, kg [lb] | 3085 [6787] | 2880 [6336] |
| Full load weight, kg [lb] | 3610 [7942] | 3255 [7161] |
| Load weight, kg [lb] | - | - |
| Total trailer weight, kg [lb] | - | - |
| Length, mm [in.] | 6305 [248] | 5725 [225.4] |
| Width, mm [in.] | 2068 [81.4] | |
| Height, mm [in.] | 1540 [60.6] | 1520 [60] |
| Base, mm [in.] | 3880 [152.7] | 3300 [130] |
| Minimal clearance, mm [in.] | 170 [6.7] | |
| Minimal radius of turn, m [yards] | - | - |
| Maximum speed, km/h [mi/h] | 190 [118] | 200 [124] |
| Maximum horsepower, hp [kW] | 303 [223] (@ 4,400 rpm) | |
| Maximum torque, N·m [lb·ft] | 57 [370] (@ 2,700 rpm) | |
| Engine displacement, liters [cc] | 6.96 [6,960] | |
| Compression ratio | 9.5:1 | |
| Gear ratios | 3 speed automatic transmission, rear wheel drive | |
| Main gear ratio | - | |
| Mileage, liters/100km [mi/gal] | 19 [12.4] @ 90 km/h {56 mi/h} | |
| Acceleration time from 0-100 km/h [62 mi/h], seconds | 13.5 | 13 |
| Breaking distance, m [yards] | - | - |
| Fuel tank capacity, liters [gal] | 120 [31.7] (Ai-98) | |
| Years of production | 1967-1985 | 1971-1985 |
| Type of engine | ZIL-114, V8, carb., ohv. | |
| Wheel formula | 4 X 2 | |

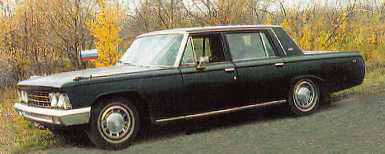

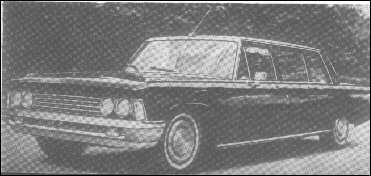

| Pictures | 12 KB (b/w, front view [98]) 20 KB (color, side view [25]) 82 KB (color, side view, drawing [106]) |

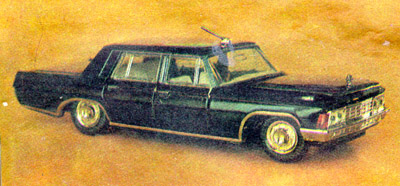

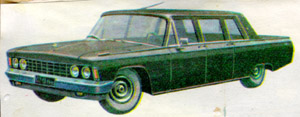

44 KB (color, side view [4]) 45 KB (color, side view, scale model [7]) 74 KB (color, side view, drawing [106]) |
