SovAvto Website.
| Model | PAZ-652 |
| Seating | 23 seats / 42 total |
| Net-weight, kg | 4200 |
| Full load weight, kg | 7500 |
| Load weight, kg | - |
| Total trailer weight, kg | - |
| Length, mm | 7150 |
| Width, mm | 2395 |
| Height, mm | 2800 |
| Base, mm | 3600 |
| Minimal clearance, mm | 255 |
| Minimal radius of turn, m | 8.9 |
| Maximum speed, km/h | 80 |
| Maximum horsepower, h.p. | 90 @ 3,600 rpm |
| Engine capacity, liters | 3.48 |
| Gear ratios | 6.40/3.09/1.69/1.00/R-7.82 |
| Main gear ratio | 7.6 |
| Mileage, liters/100km | 28 (at 45 km/h) |
| Breaking distance, m | - |
| Fuel tank capacity, liters | 105 (A-72) |
| Years of production | 1958-1964 (PAZ-652B 1964-1968) |
| Type of engine | GAZ-652, carb., 4 tact, 6 cyl., sv |
| Compression ratio | 6.7:1 |
| Wheel formula | 4 X 2 |

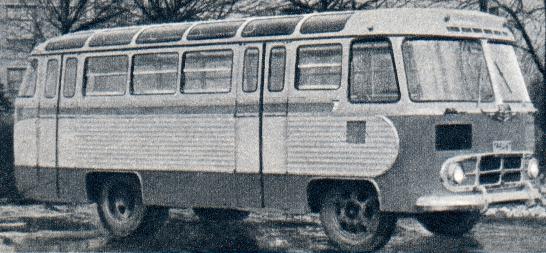

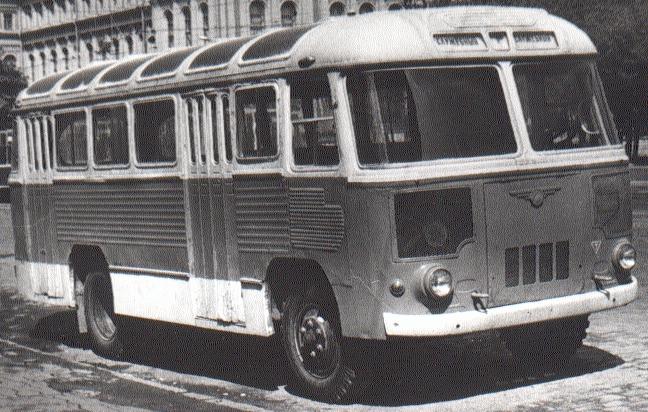

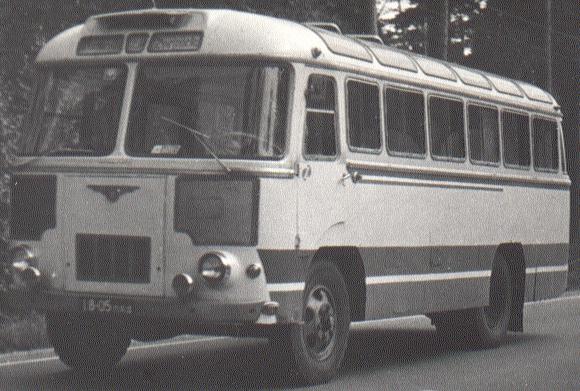

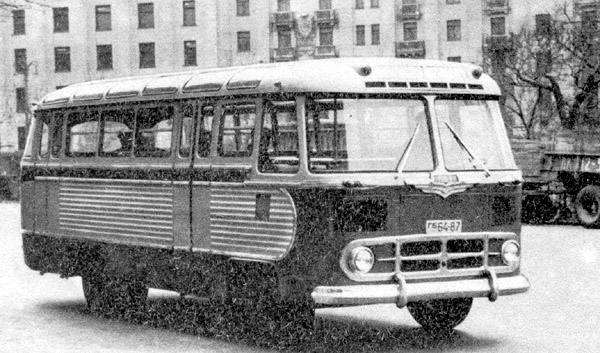

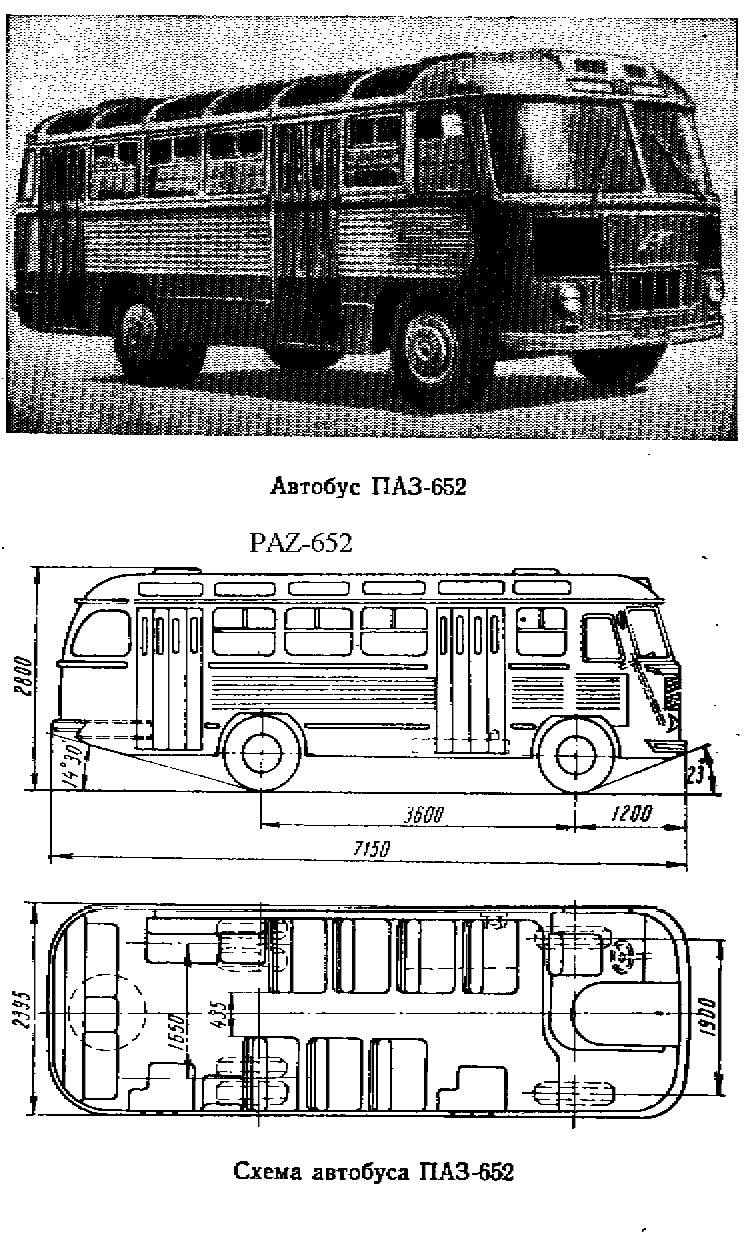

| Pictures | 94 KB (b/w, front view [1957
prototype] [3]) 39 KB (b/w, side view [1957 prototype] [7/28]) 94 KB (color, side view, drawing [PAZ-652B] [106]) 69 KB (b/w, front view [7/28]) 52 KB (color, front view [7/28]) 48 KB (b/w, side view, w/ technical info [1]) 49 KB (b/w, front view [PAZ-652B] [7/28]) |
Also made were modifications of this bus for tourists, with only one passenger door. The passenger doors are operated with vacuum drive. The interior is furnished with heating and ventilation.
