Model	Ya-3
Seating	3
Net-weight, kg [lb]	4,180 [9,196]
Full load weight, kg [lb]	7,405 [16,291]
Load weight, kg [lb]	3,000 [6,600]
Total trailer weight, kg [lb]	-
Length, mm [in.]	-
Width, mm [in.]	-
Height, mm [in.]	-
Base, mm [in.]	-
Minimal clearance, mm [in.]	-
Minimal radius of turn, m [yards]	-
Maximum speed, km/h [mi/h]	30 [17]
Maximum horsepower, hp [kW]	35 [26]
Maximum torque, N·m [lb·ft]	18.5 [120]
Engine displacement, liters [cc]	4.40 [4,400]
Compression ratio	4.0:1
Gear ratios	-
Main gear ratio	-
Mileage, liters/100km [mi/gal]	40 [5.9]
Acceleration time from 0-100 km/h [62 mi/h], seconds	-
Breaking distance, m [yards]	-
Fuel tank capacity, liters [gal]	-
Years of production	1925-1928
Type of engine	6 cyl., carb., 4-tact, sv
Bore/Stroke, mm [in.]	100 [3.94]/ 140 [5.51]
Wheel formula	4 X 2
Pictures	75 KB (color, side view [3]) 62 KB (color, side view, drawing [106]) 91 KB (b/w, front view [3]) 50 KB (b/w, side view [1]) 17 KB (b/w, front view [4])

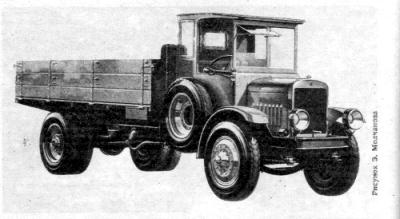

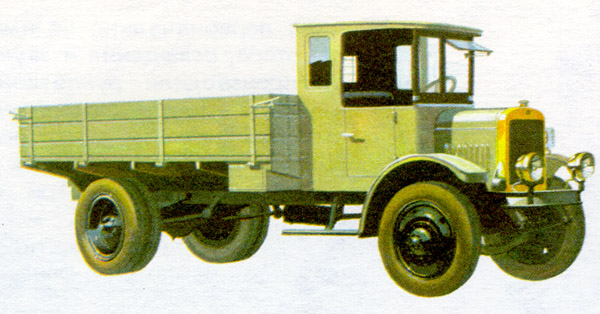

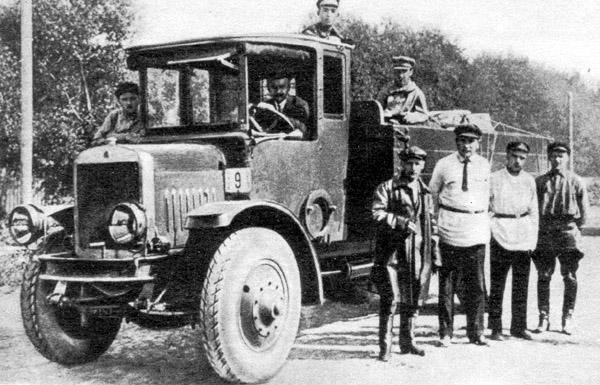

This vehicle is the first serially produced truck from Yaroslavl. Here, the index Ya-3 stands for Yaroslavl-3. Notice that the first 2 pictures feature a slightly differently looking truck then the third one. If you know why, let me know. Maybe one of them is an experimental model, while other is the production model.
