KamAZ-6423

SovAvto Website.



Model KamAZ-6423
Seating 3
Net-weight, kg 9,800
Full load weight, kg 23,000
Load weight, kg 13,200
Total trailer weight, kg 21,000
Length, mm 7600
Width, mm -
Height, mm 3090
Base, mm 3340 from front to center of rear 2 axles/ 1320 in rear
Minimal clearance, mm -
Minimal radius of turn, m 11.3
Maximum speed, km/h 90
Maximum horsepower, hp 260 @2600 rpm
Engine capacity, liters 10.85
Gear ratios -
Main gear ratio -
Mileage, liters/100km -
Breaking distance, m -
Fuel tank capacity, liters -
Years of production 1980's-present
Type of engine KamAZ-7403, V8.
Wheel formula 6 X 6

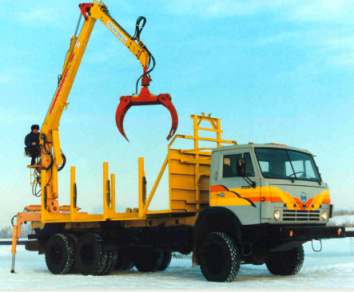

Pictures 13 KB (color, used to carry articles 2-6 m long. [see below for details] [87])

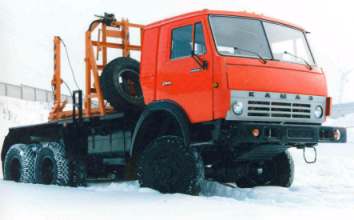

11 KB (color, transports lumber [87])

This truck is intended for transporting lumber and servicing the loading/unloading functions by itself. The vehicle is capable of working in any terrain and on any type of roads. Lumber pieces from 2-6 meters can be carried. It is supplied with "Sinegorec-75" (5 KB  [87]) mechanical arm. "Sinegorec-75" can exert power of up to 75 kNm and the maximal length of the extended shaft is 7.8 m (8.5 yds). It can turn 380 degrees horizontally and up to 85 degrees and it has a mass of 1950 kg (2050 lbs).

It is possible to install the manipulator "Sinegorec-75" on a KamAZ-53213 (6 X 4) chassis which increases the maximum load weight that the truck can carry as well as its fuel economy.
