| Model | KamAZ-5510 |
| Seating | 3 |
| Net-weight, kg | 8,270 |
| Full load weight, kg | 15,495 |
| Load weight, kg | 7,000 |
| Total trailer weight, kg | - |
| Length, mm | 6560 |
| Width, mm | 2500 |
| Height, mm | 2680 |
| Base, mm | 3500 |
| Minimal clearance, mm | 285 |
| Minimal radius of turn, m | - |
| Maximum speed, km/h | 80 |
| Maximum horsepower, hp | 180 @ 2,600 rpm |
| Engine capacity, liters | 10.85 |
| Compression ratio | 17:1 |
| Gear ratios | - |
| Main gear ratio | - |
| Mileage, liters/100km | 20.5 |
| Breaking distance, m | - |
| Fuel tank capacity, liters | 170 |
| Years of production | 1977?-? |
| Type of engine | YaMZ-7401, diesel, 4-tact, V8, ohv |
| Wheel formula | 6 X 4 |
| Pictures | 83 KB (color, front view,

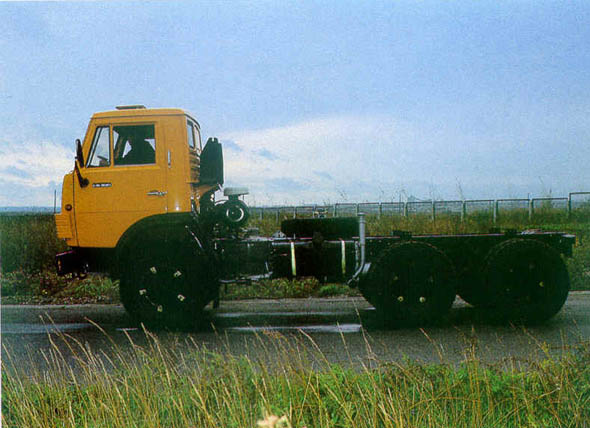

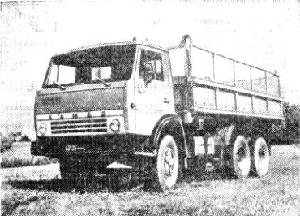

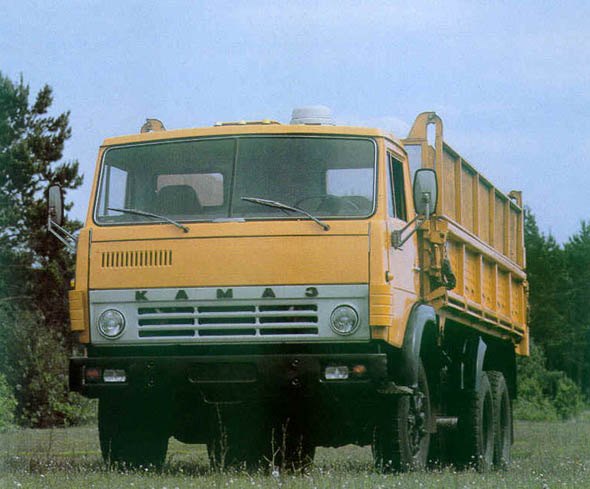

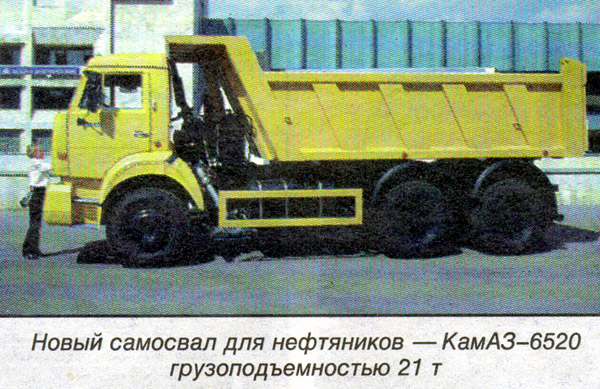

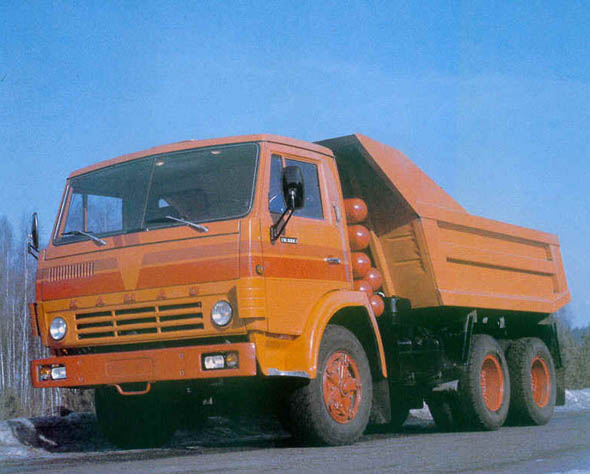

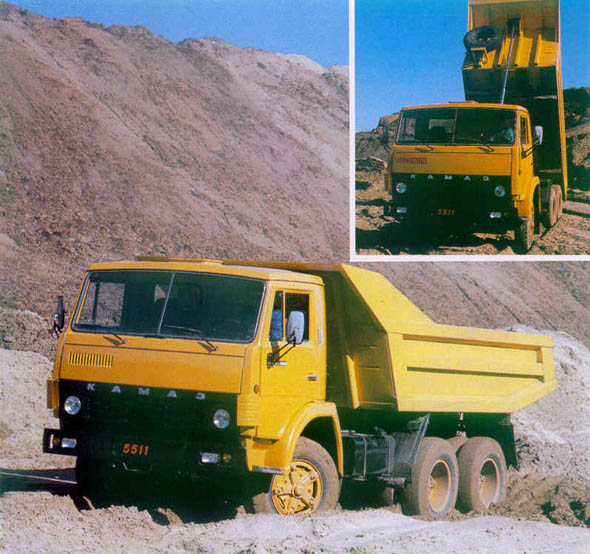

drawing [106]) 56 KB (color, front view, dump-truck [KamAZ-55102] [59]) 19 KB (b/w, front view, dump-truck [KamAZ-55102] [16]) 56 KB (color, side veiw, chassis [KamAZ-55111] [59]) 80 KB (color, front view, dump-truck [KamAZ-55111] [59]) 50 KB (color, front view, dump-truck [KamAZ-55118] [59]) 154 KB (color, side view, dump-truck w/ 21,000 kg capacity [KamAZ-6520] [13]) |
