GAZ-67

SovAvto Website.



Model GAZ-67B (GAZ-67)*
Seating 4
Curb weight, kg TOTAL 1,320
front axle -
rear axle -
Gross weight, kg TOTAL -
front axle -
rear axle -
Payload [carrying capacity] weight, kg -
Permissible [semi-]trailer weight, kg -
Length, mm 3350
Width, mm 1685
Height, mm 1700
Wheelbase, mm 2100
Track width, mm front 1445 (1250)
rear -
Minimal ground clearance, mm under front axle -
under rear axle 210
Minimal radius of turn, m b/n curbs (outer front wheel) -
b/n walls (extreme exterior dimension -
Maximum speed, km/h 90
Fuel consumption, liters/100km 15
Acceleration time from 0-100 km/h, seconds -
Transmission gearbox 4 speed
gearbox ratios -
main gear ratio -
transfer case ratio -
clutch -
Wheels number -
tire size -
tire pressure, kg/cm2 -
Suspension front -
rear -
Steering gear cone worm and 2-ridge roller ??
gear ratio -
Brakes braking distance, m -
service (foot) -
parking (hand) -
Filling capacities, liters fuel tank 70
engine cooling system -
engine lubrication system -
gearbox housing  -
axle housing -
steering system cylinder -
shock absorbers -
hydraulic brake drive -
air filter -
Carburetor -
Electric equipment -
Accumulator battery -
Generator [alternator] -
Relay-regulator -
Starter motor -
Timer-distributor -
Spark plugs -
Engine engine type 4 cyl., carb., 4-tact
cylinder work order -
maximum horsepower, hp 54 @ 2,800 rpm
maximum torque, N·m 17.0
displacement, liters 3.28
compression ratio 4.6:1
bore/stroke, mm 98.43 / 107.95
Years of production 1944-1953 (1943-1944)
Total units made 92,843
Wheel arrangement 4 X 4

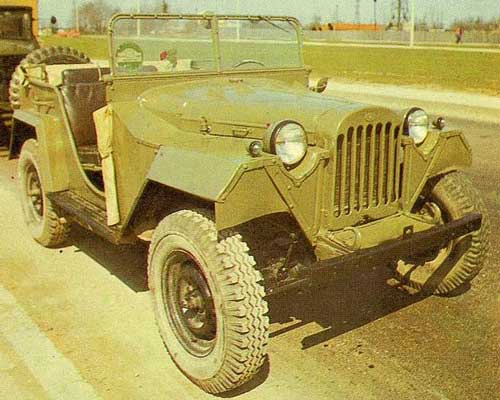

Pictures 35 KB (color, post-war model [7])

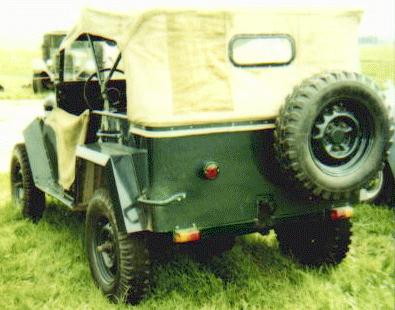

25 KB (color, rear view [7])

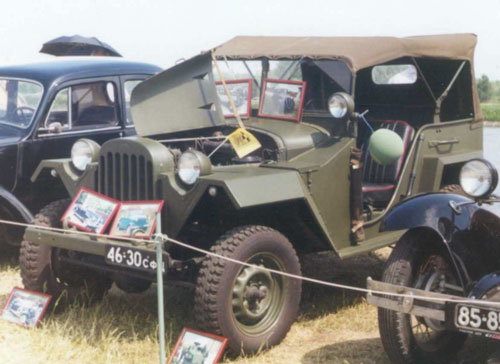

43 KB (color, front view, w/ open hood [122])

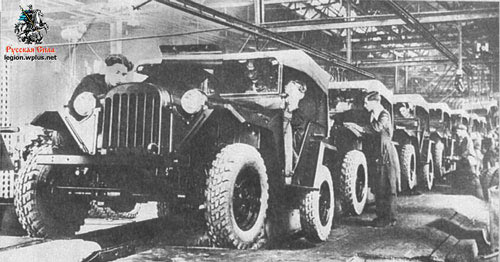

40 KB (b/w, front view, assembly line [19/4])

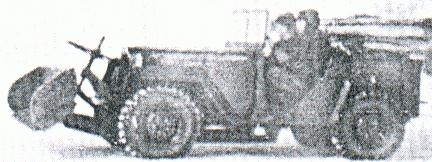

20 KB (b/w, side view, street cleaner [7])

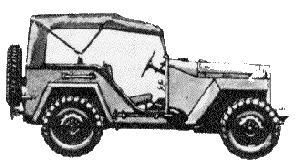

13 KB (b/w, side view, drawing [103])

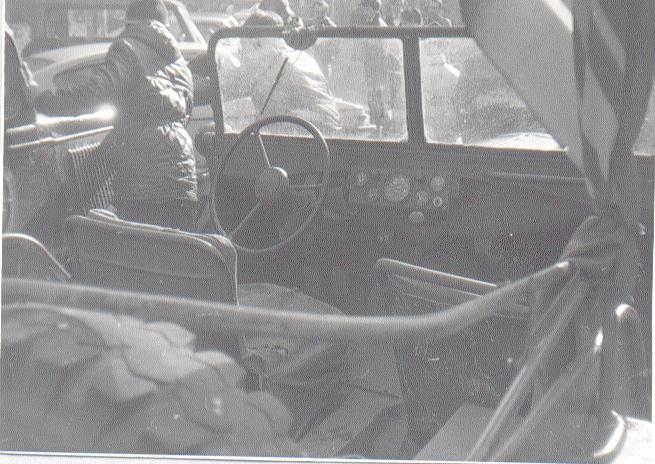

56 KB (b/w, interior view [7/28])

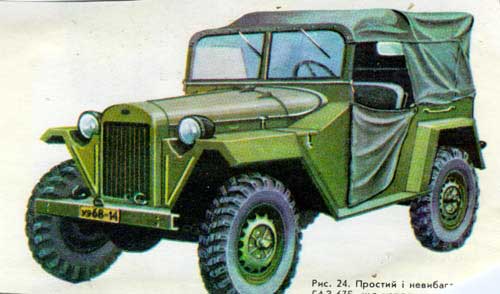

24 KB (color, side view [GAZ-67B] [25])

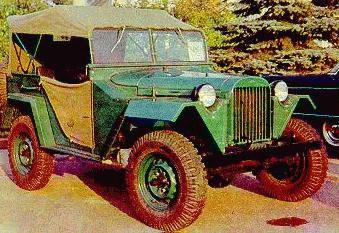

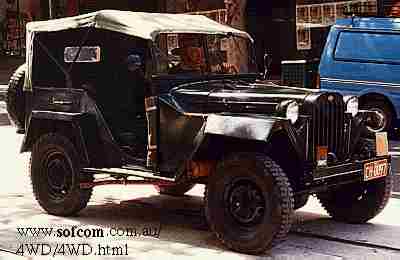

29 KB (color, war-time model [GAZ-67B] [4])

11 KB (color, side view, captured in Korea [GAZ-67B] [1943] [37])

*Values in (parenthesis) are for GAZ-67 which are different from GAZ-67B.

During 1943-1944, GAZ-67 was made, and 1944-1953 GAZ-67B was made. 92,843 of these cars were made, but only 4,851 of them during the 1943-1945 period. They are entirely based on GAZ-64 and are almost identical. The war time GAZ-67B has radiator grill made up of welded metal poles, while the post-war GAZ-67B has grill made of one stamped metal sheet. This car was created in very short time. GAZ-67B differs from GAZ-67 by having wider track. There were different modifications of GAZ-67 such as hard-top GAZ-67-420 (those were made only in 1944), amphibia GAZ-011 (1945), etc... GAZ-67B was an immediate predecessor of GAZ-69. During the Second World War this GAZ jeep was used side by side with American Willys MB (43 KB [7]). Russian army commanders quickly recognized, however, with the appearance of the Lend-Lease act that Willys were in some ways superior to GAZ-67B.
